Our Cooling Tower Series

Five purpose-built product lines covering small to ultra-large industrial applications, from 50,000 to 2,750,000+ kcal/h.

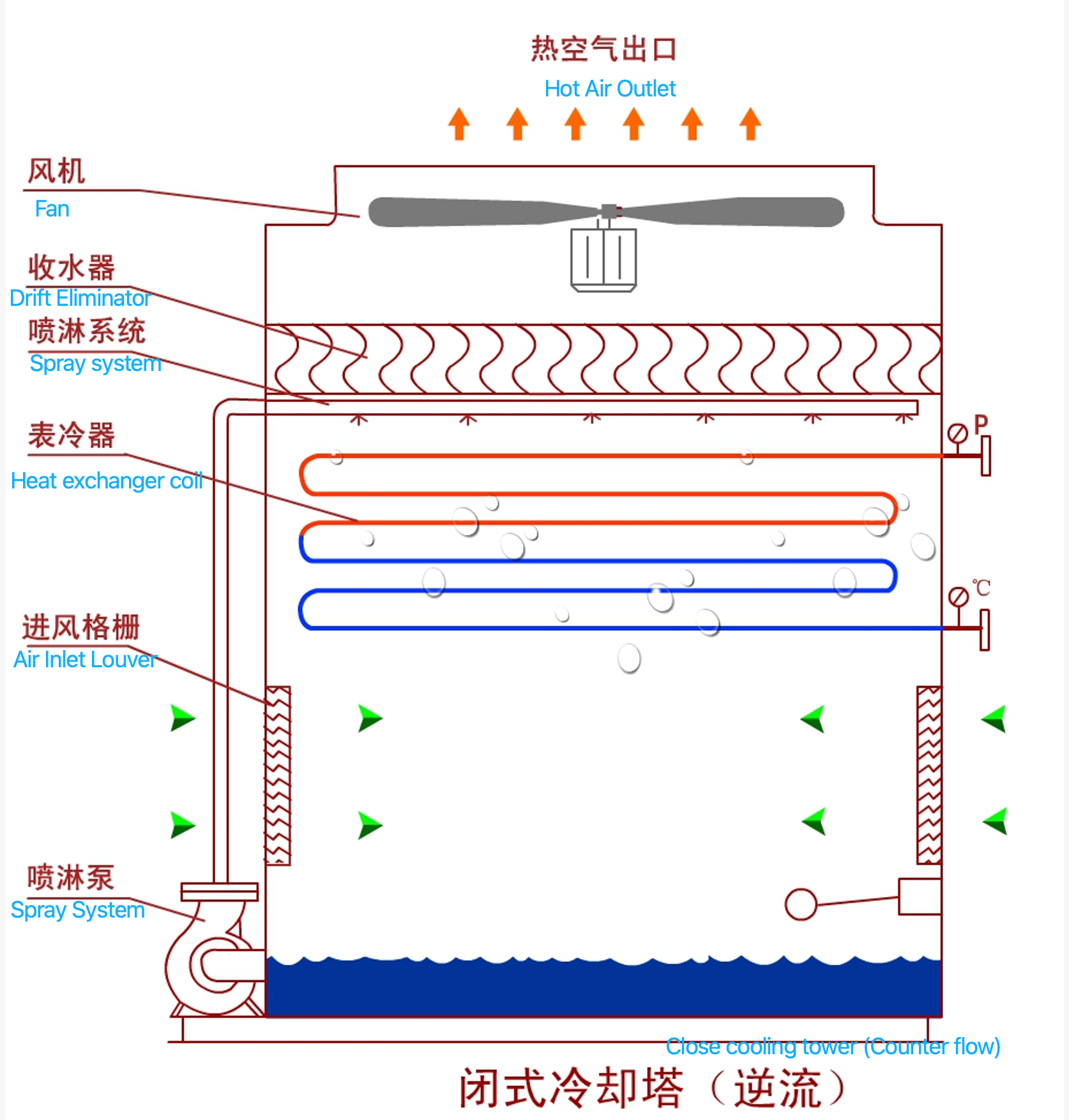

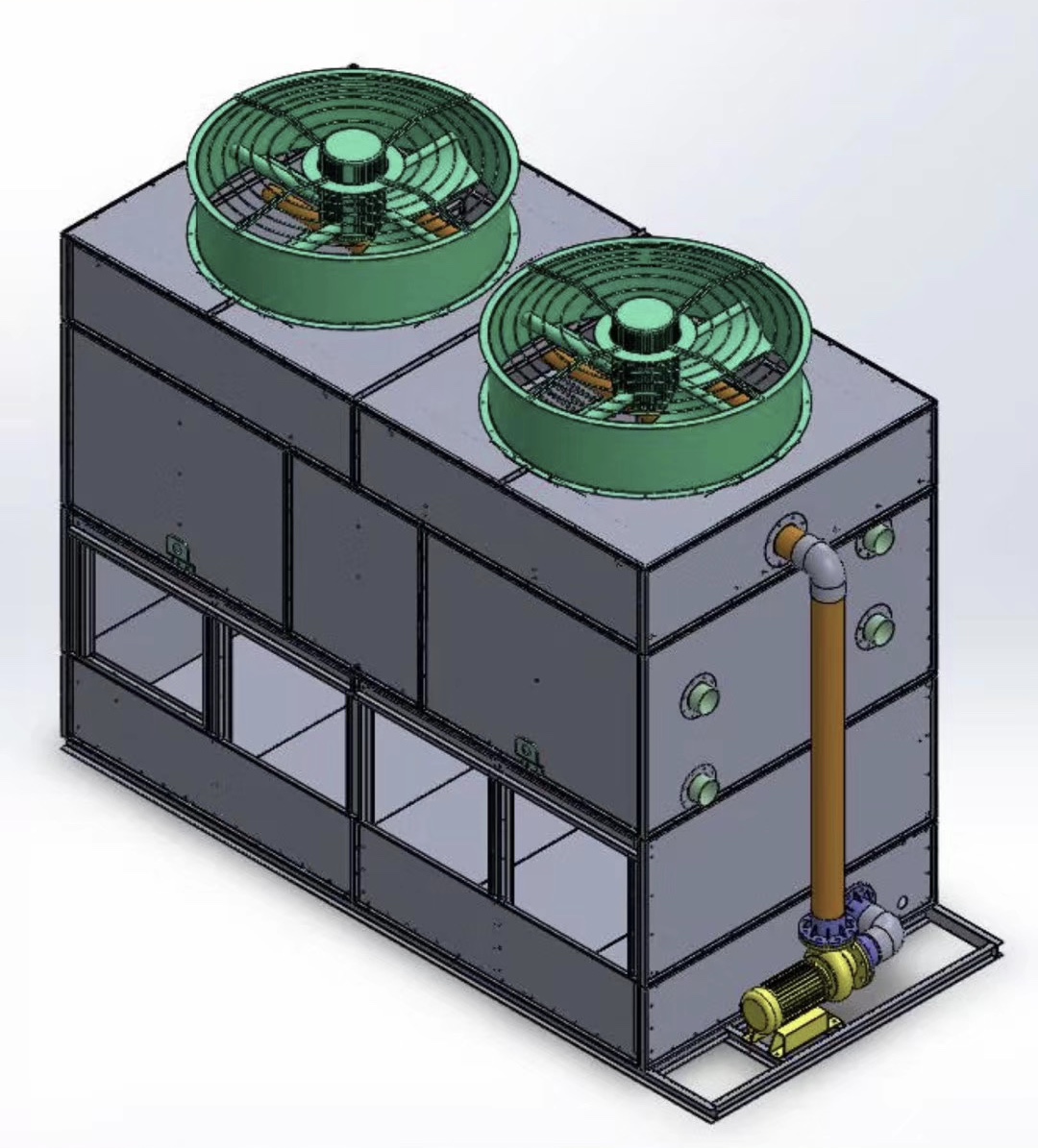

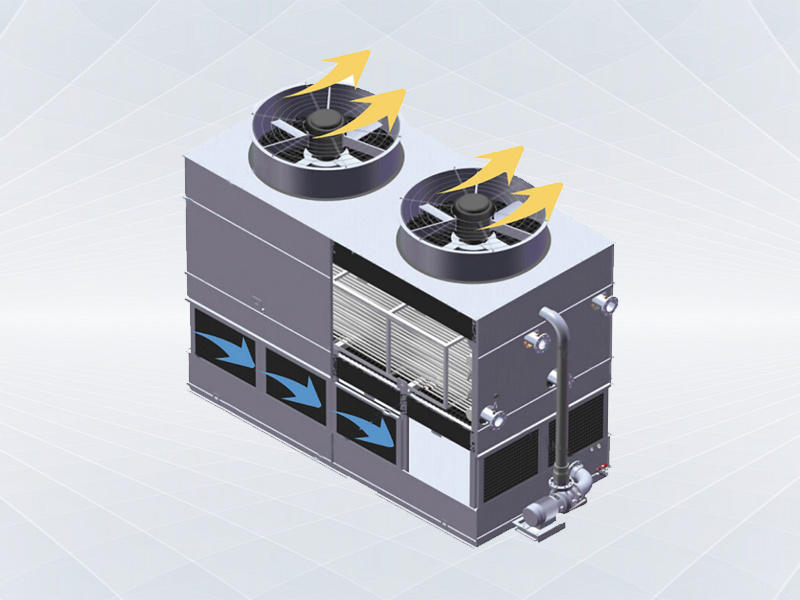

Counter Flow Closed Cooling Tower

YBN Series

Counter-flow design minimizes blind spots, ensuring high heat exchange efficiency
High-performance drift eliminator keeps drift loss ≤ 0.001%
Tall fan stack ensures sufficient airflow for effective cooling
Compact footprint — saves space compared to conventional towers
Fully enclosed casing prevents debris ingress and nozzle clogging
Freeze-protection design allows complete drainage to prevent freeze damage in cold climates
Optional dual-circuit coil ensures continuous operation if one circuit fails
User-friendly design with digital display, easy operation and maintenance

Counter Flow Closed

Cooling Capacity

50,000 – 2,500,000 kcal/h

Model Variants

≤0.001%

Drift Loss

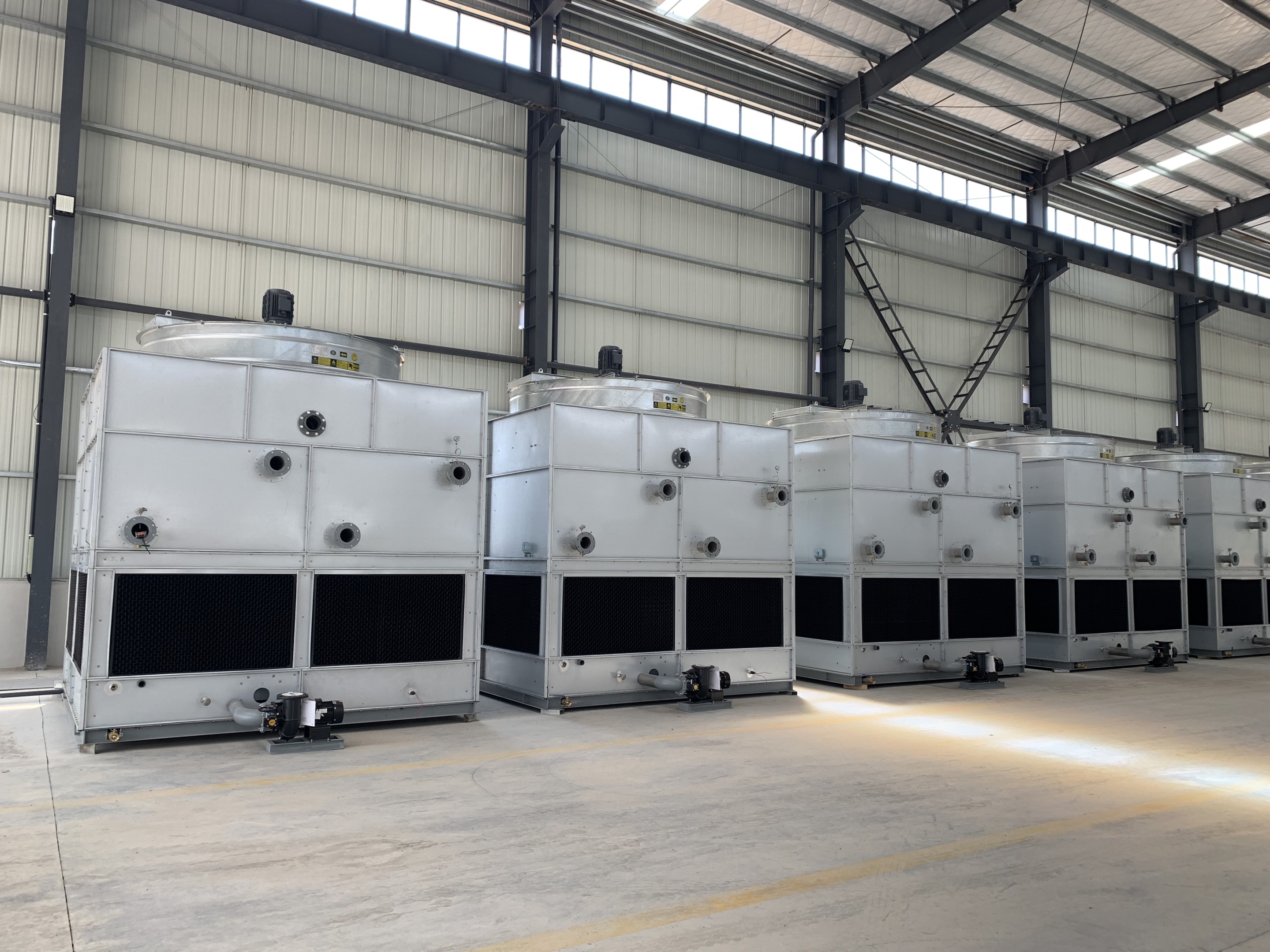

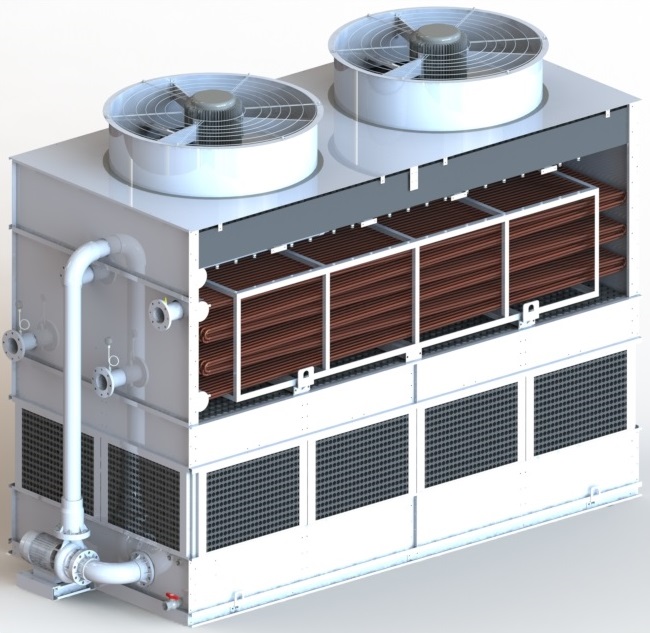

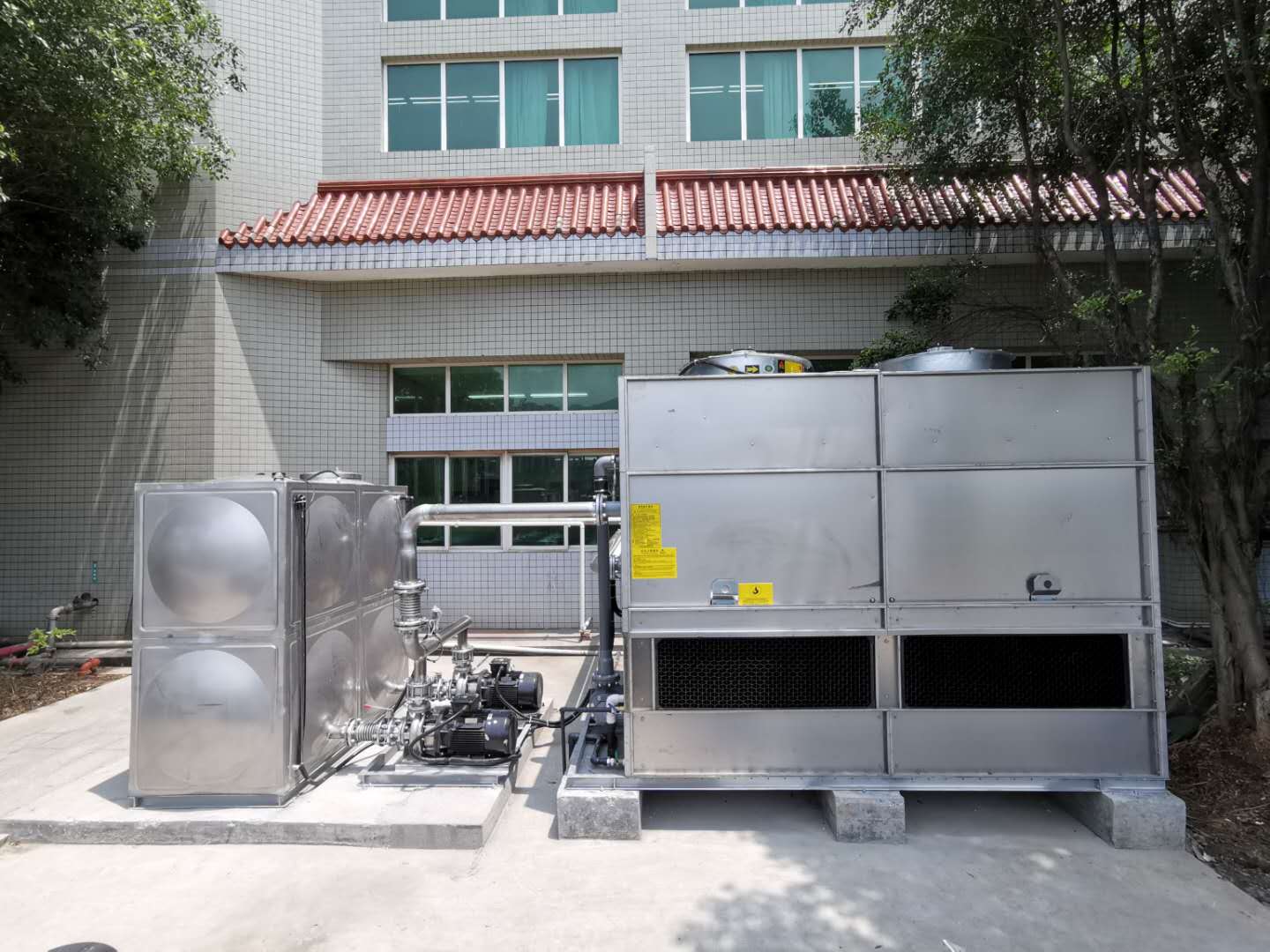

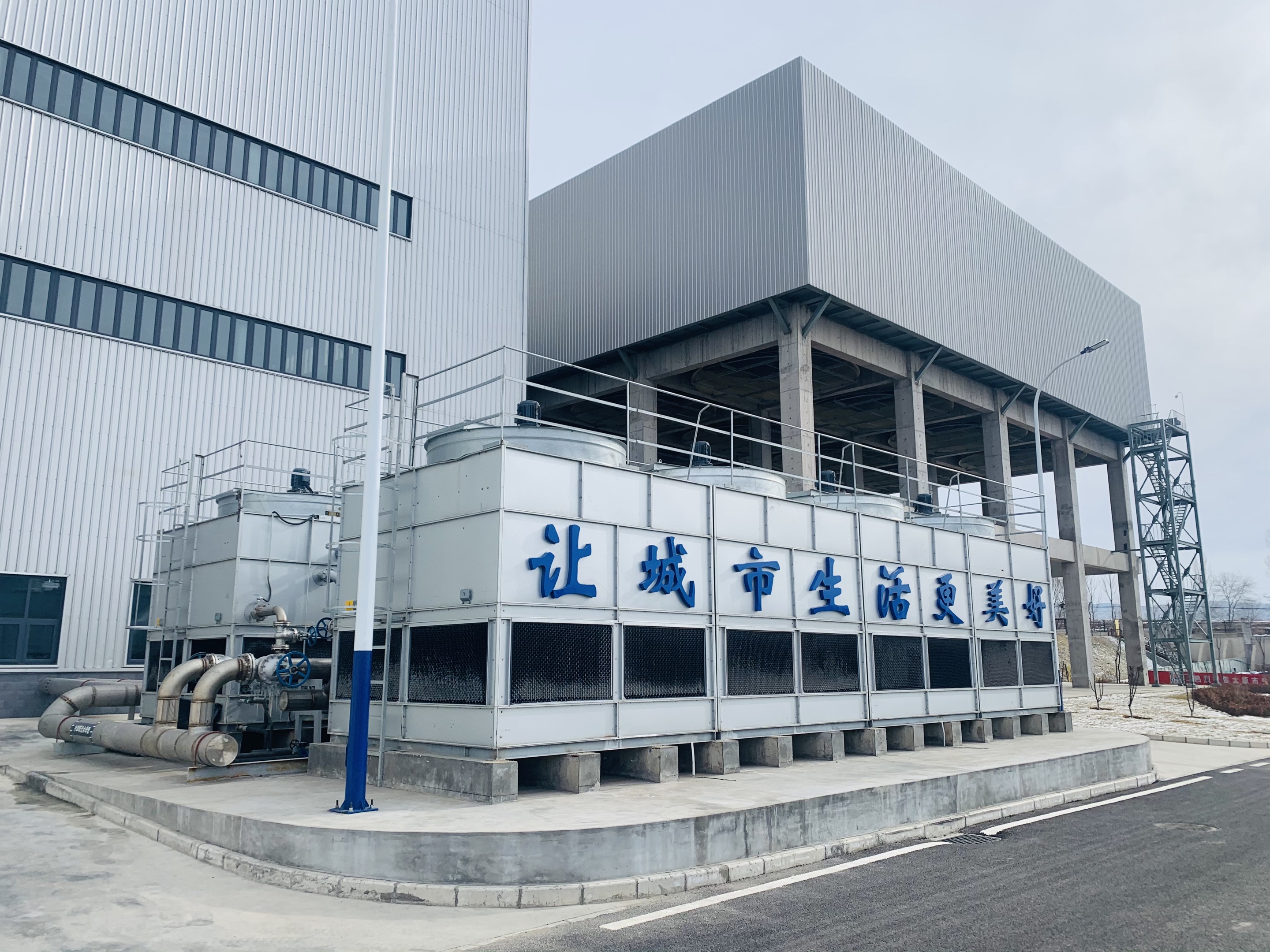

Real Product Views

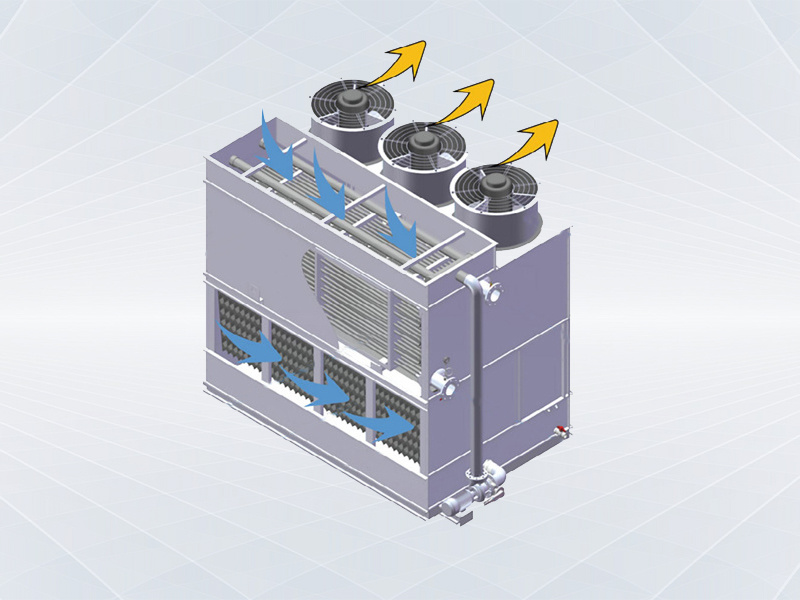

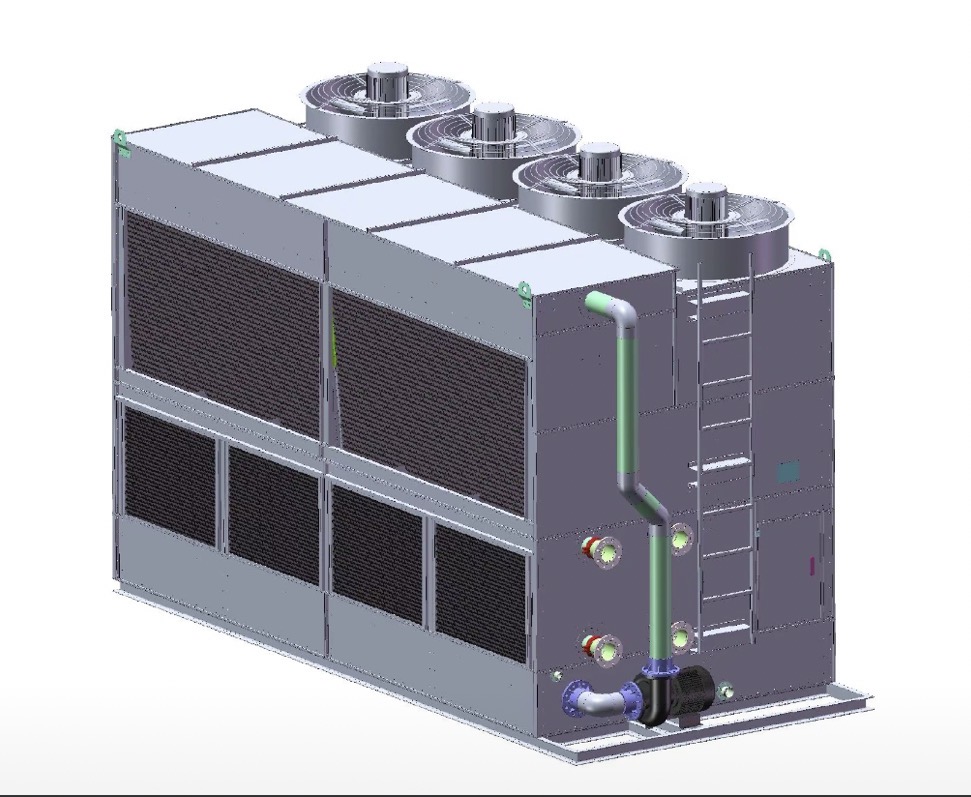

Compound Flow Closed Cooling Tower — Single Air Inlet

YBH Single Inlet

Hybrid-flow cooling design — capable of cooling high-temperature media with demanding differential temperature requirements
Built-in access platform with spacious interior for easy maintenance and servicing
Tall fan stack & unique exhaust system ensure high airflow, rapid heat dissipation, and reliable cooling performance
Low noise level; consumable parts from leading domestic brands for low failure rate and low maintenance cost
Freeze-protection & energy-saving coil design allows complete drainage in low-temperature northern regions, preventing freeze damage
Exterior design complies with international cooling tower certification standards — elegant appearance, simple operation and maintenance

Single Air Inlet

Cooling Capacity

150,000 – 2,750,000 kcal/h

Model Variants

Hybrid

Flow Design

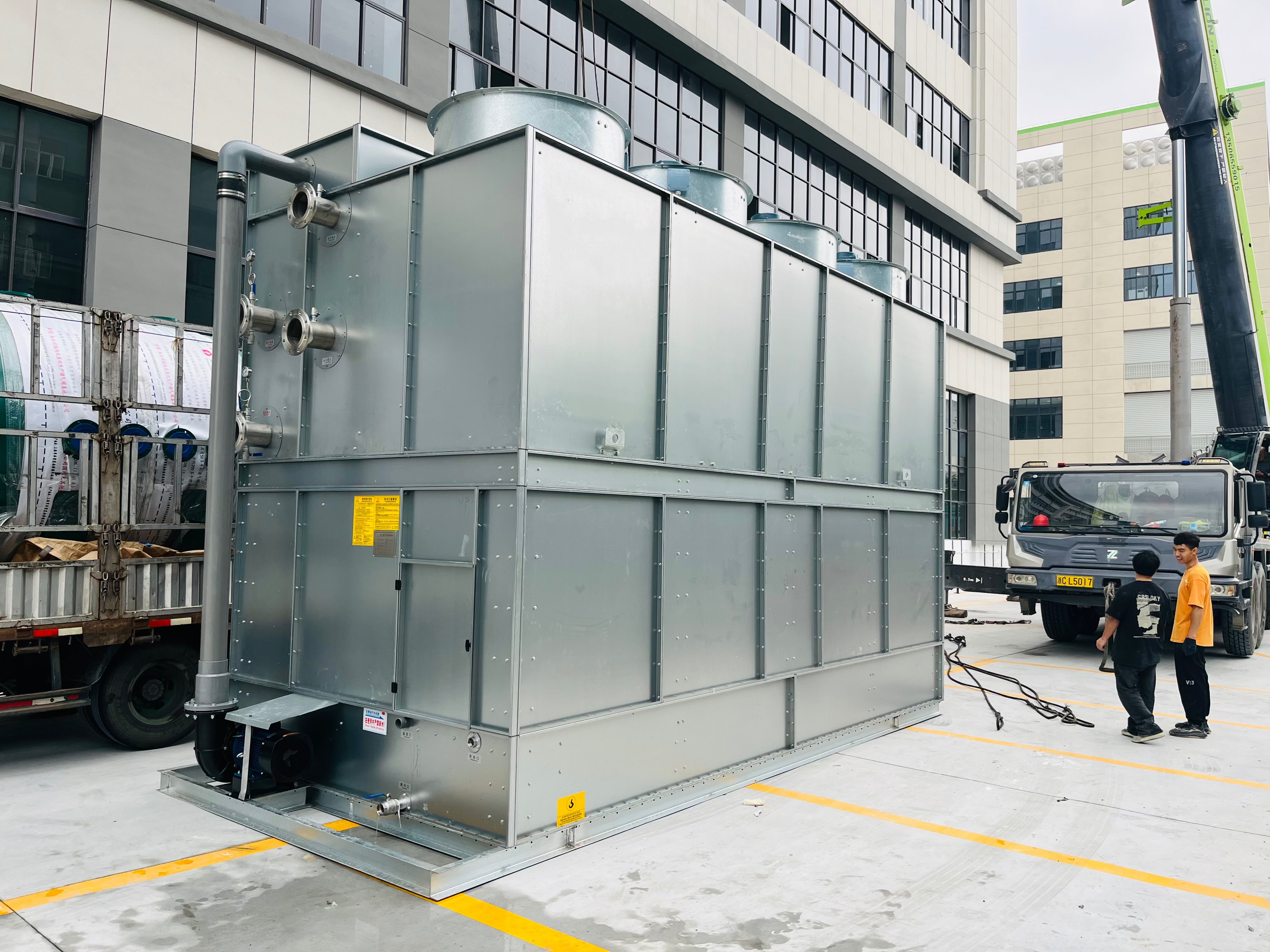

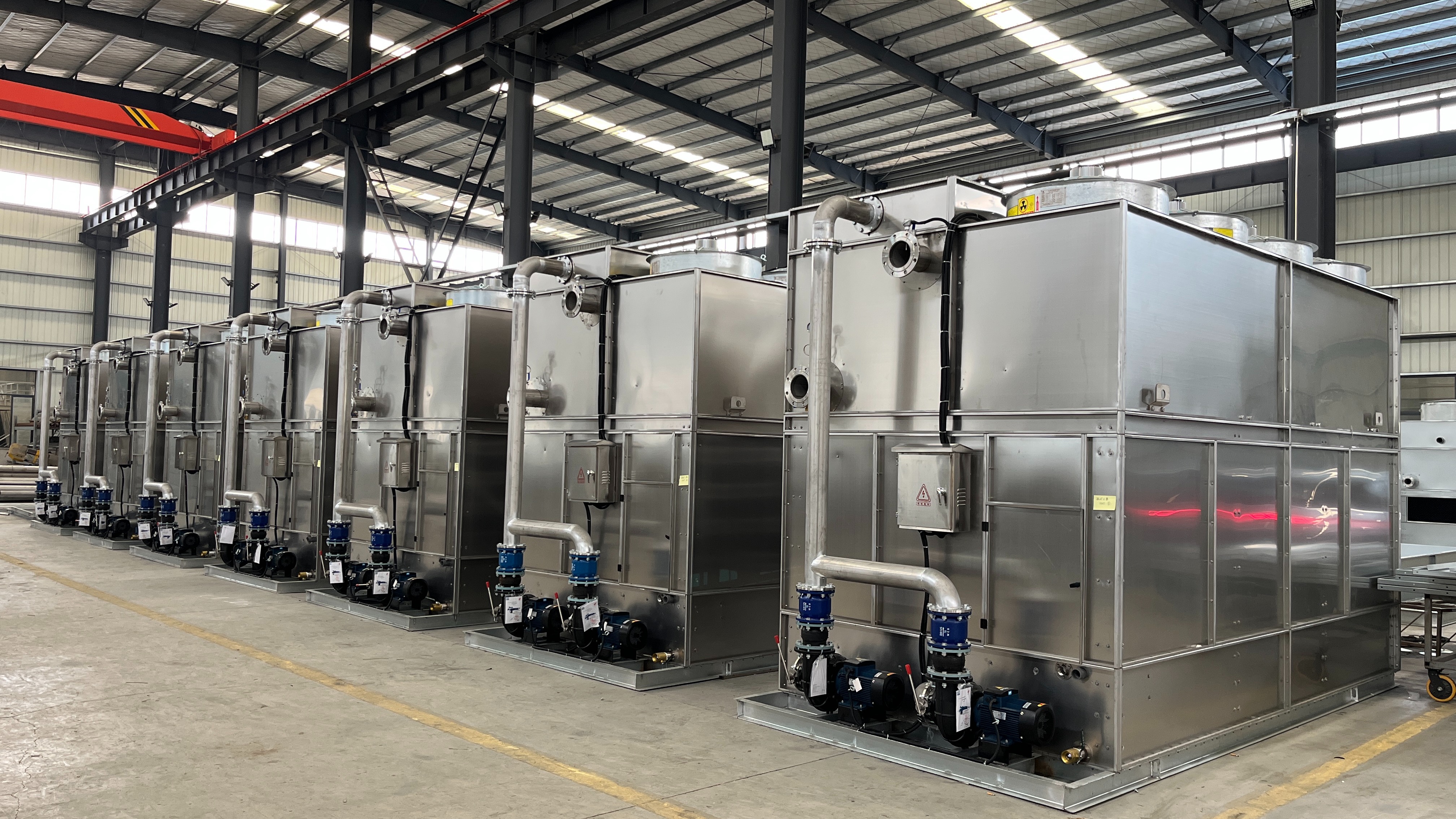

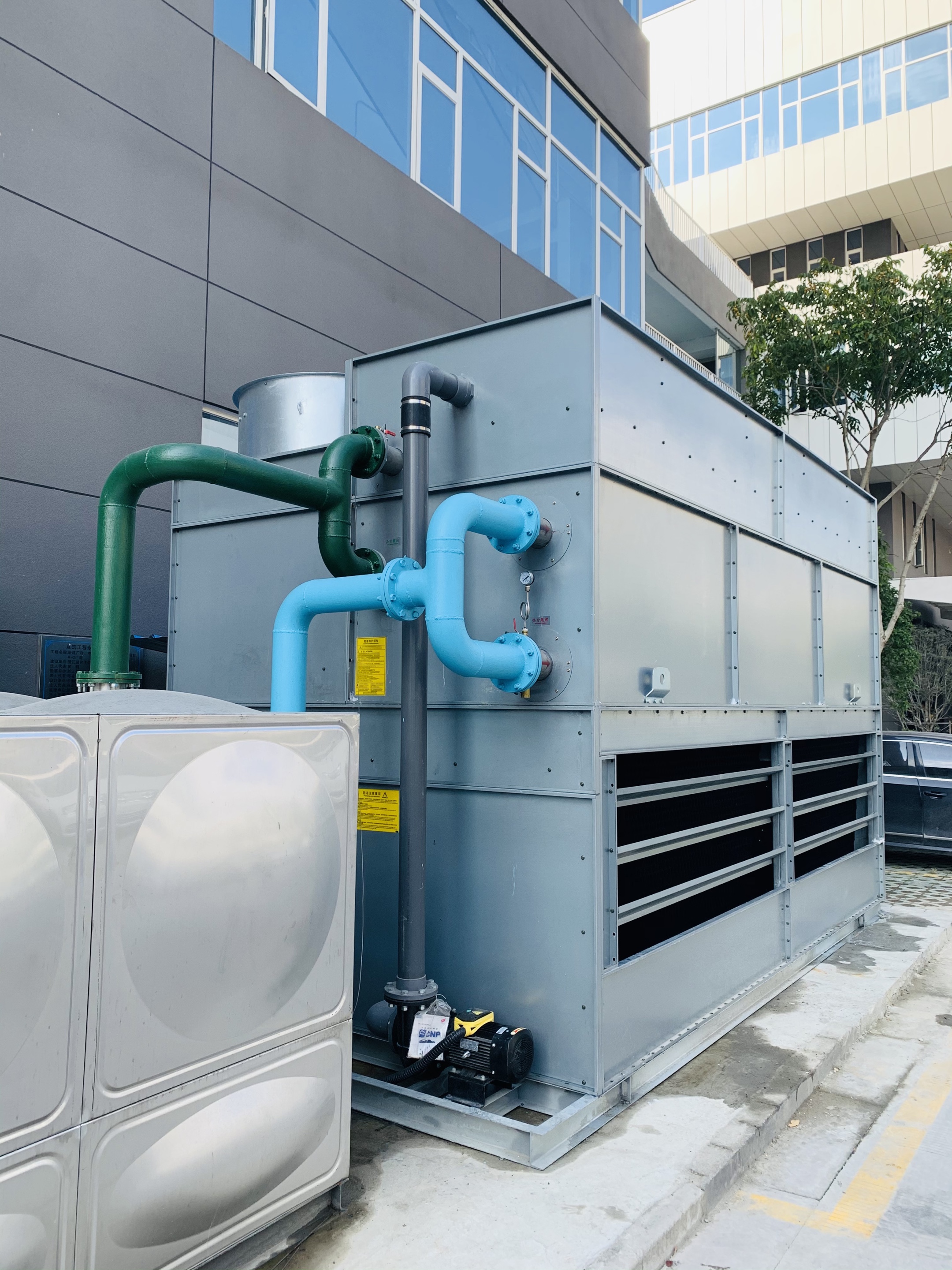

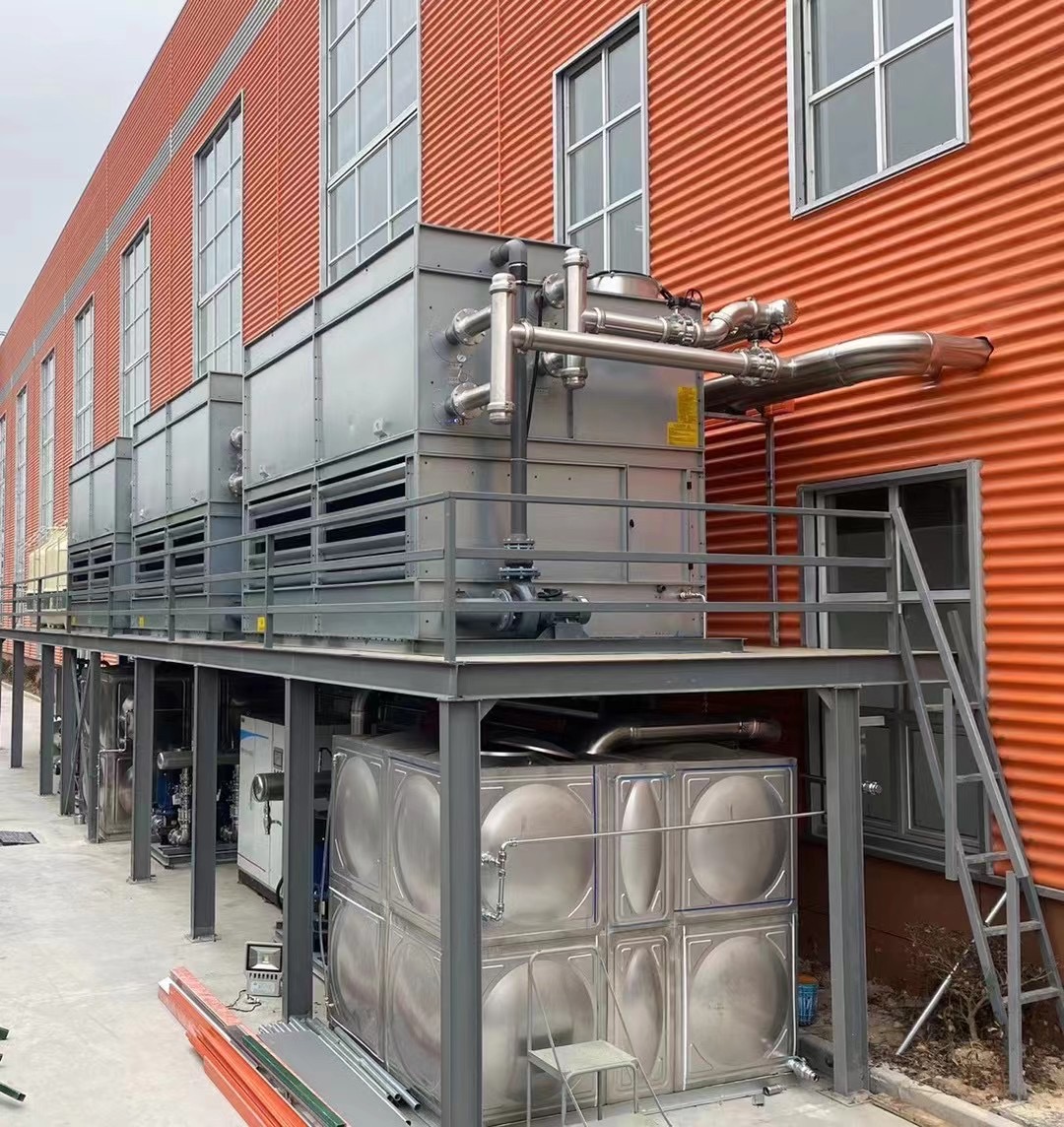

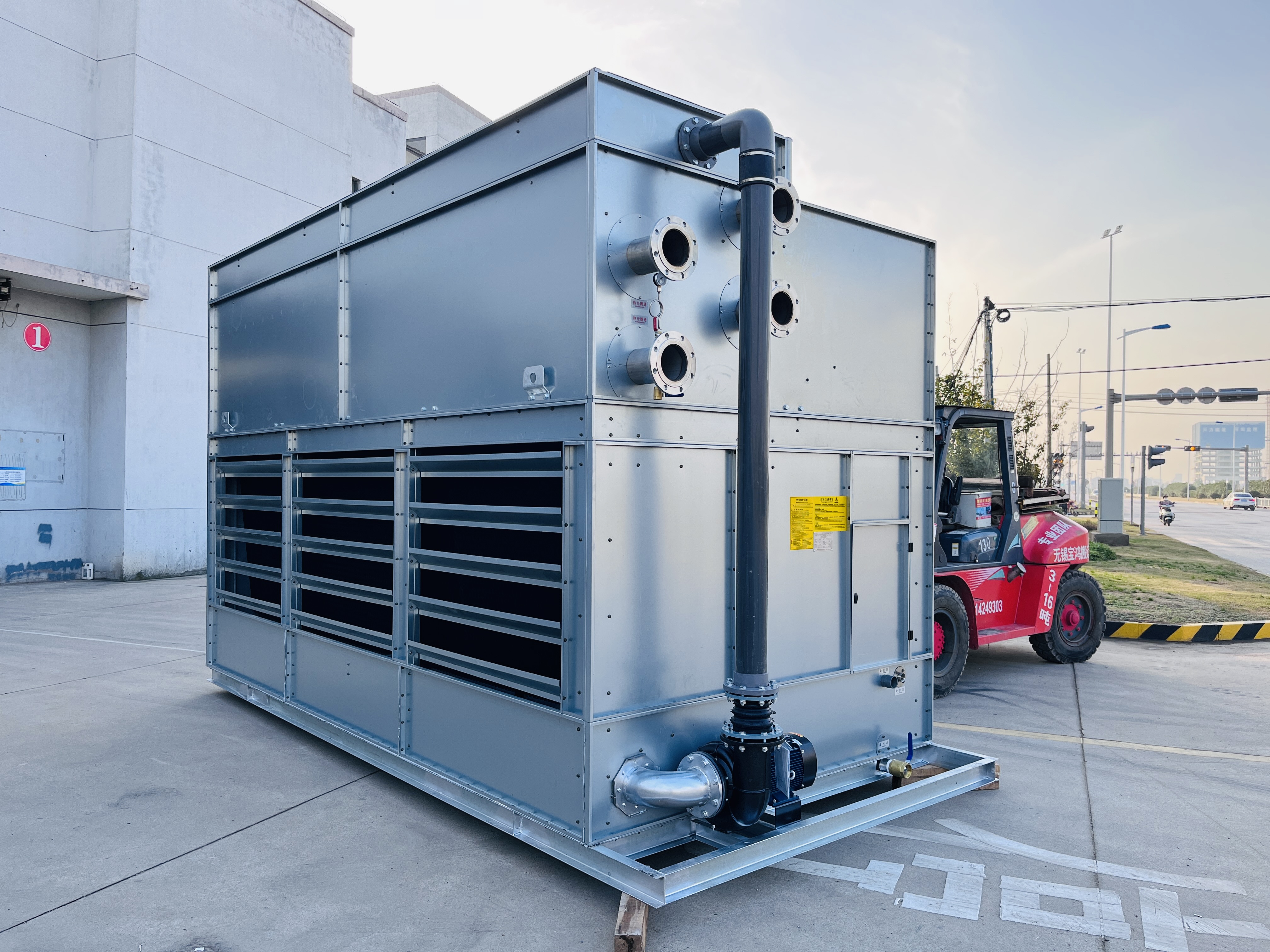

Real Product Views

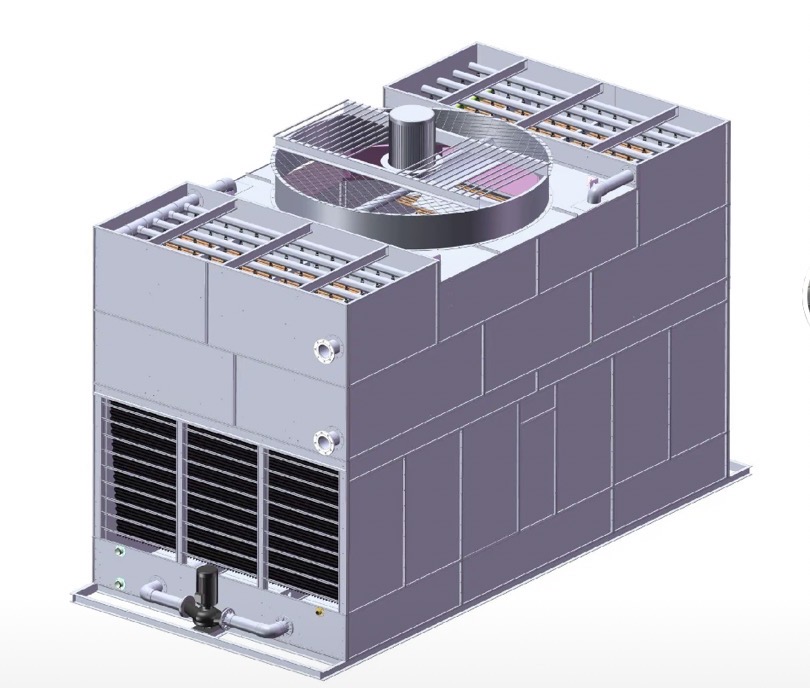

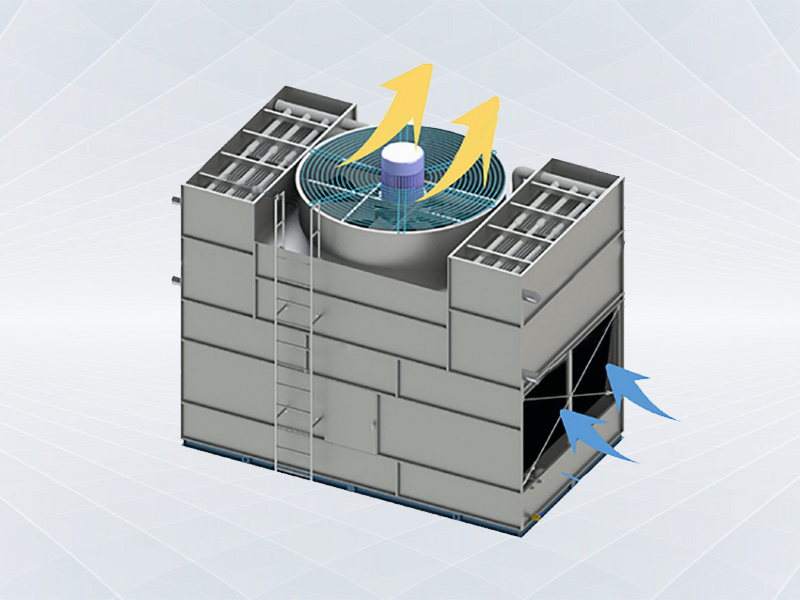

Compound Flow Closed Cooling Tower — Double Air Inlet

YBF Double Inlet

Developed from the single-air-inlet design — incorporates two coils and a PVC heat exchange layer into a single shared fan system, enabling higher performance and lower energy consumption within a compact footprint
Achieves the required industrial capacity with just a single module — ideal solution for large-scale projects
Two independent coil circuits allow cooling of different fluids simultaneously within the same tower

Double Air Inlet

Cooling Capacity

400,000 – 2,500,000 kcal/h

Models

2×

Coil Circuits

Module

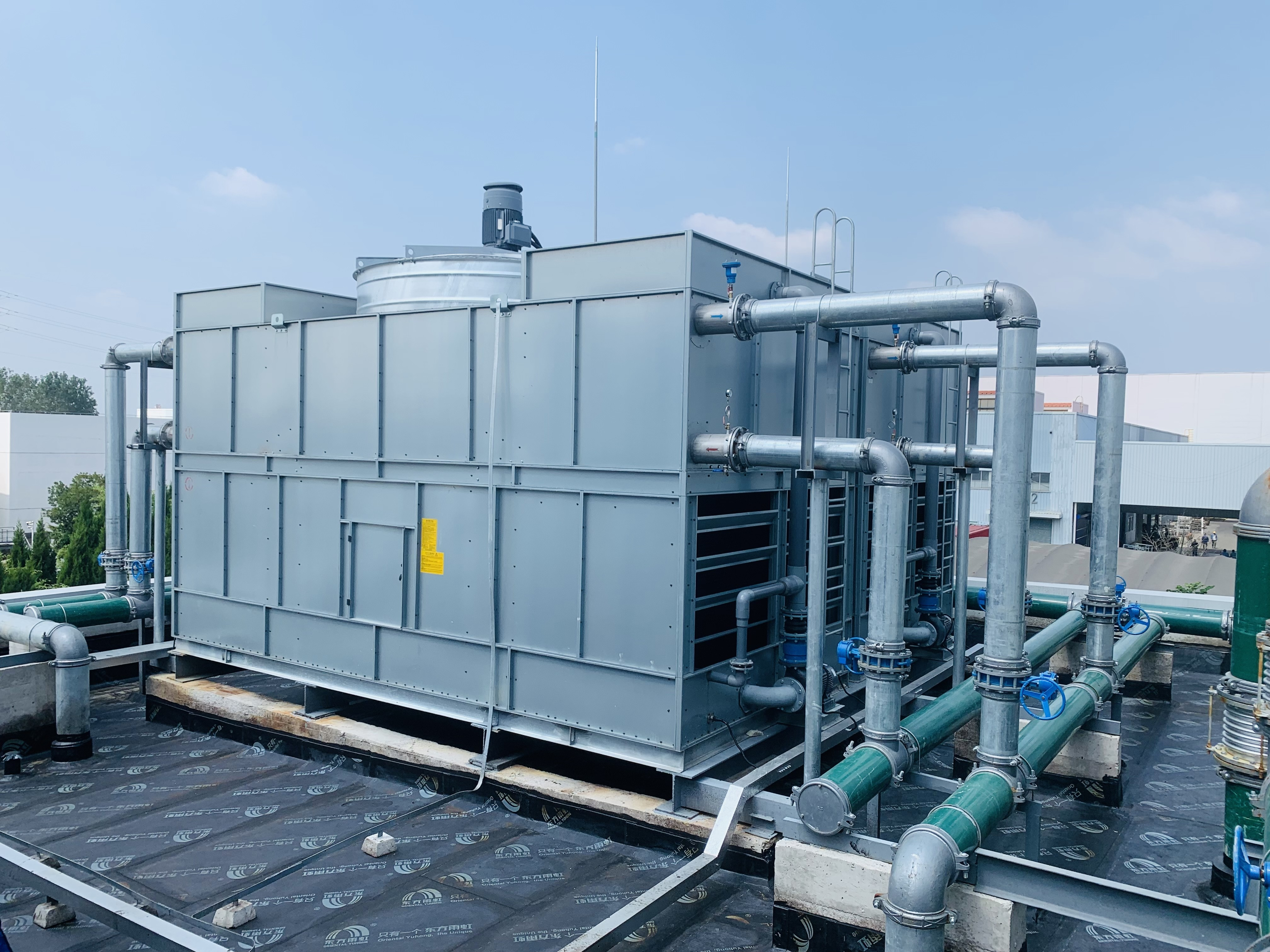

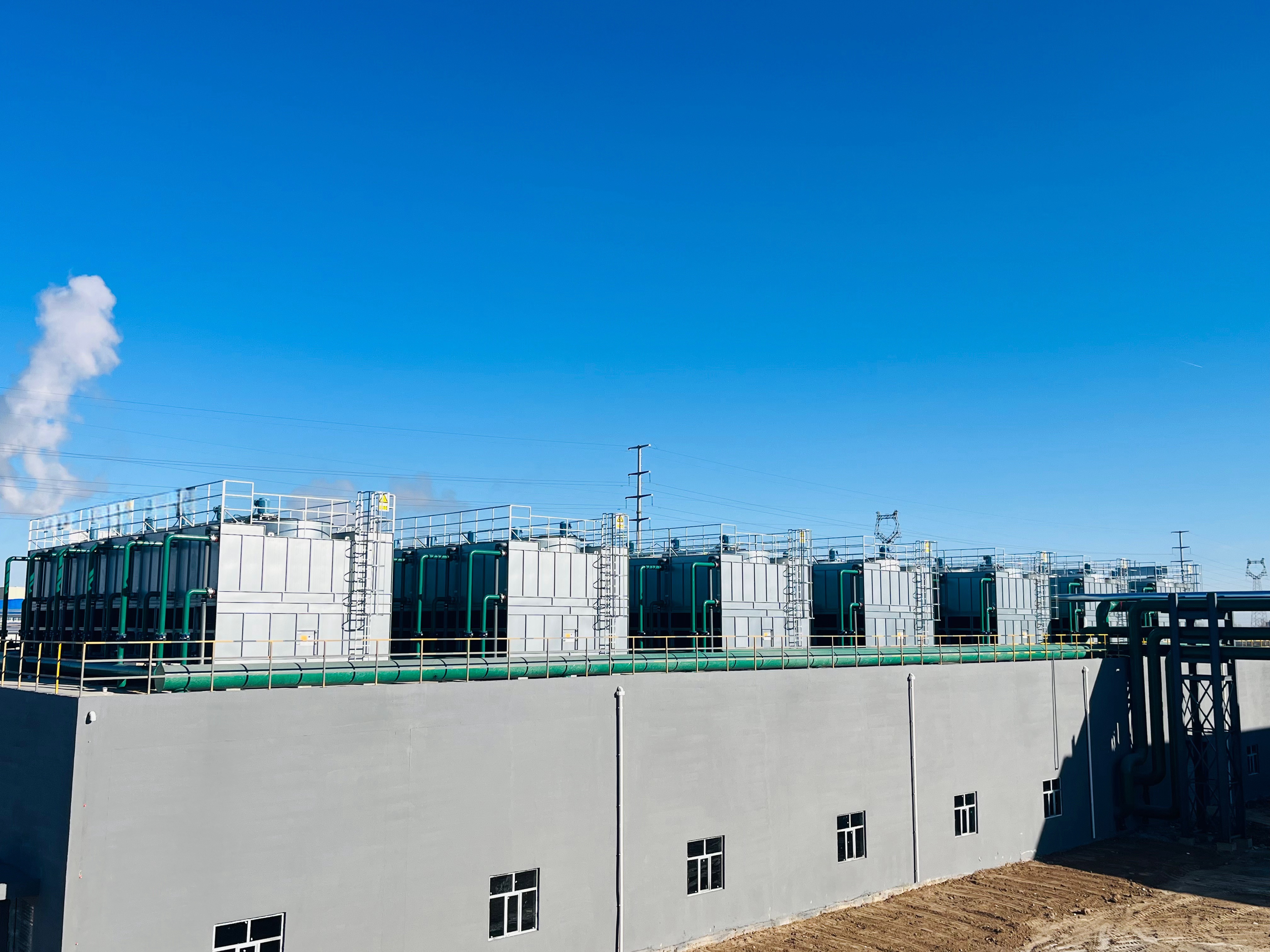

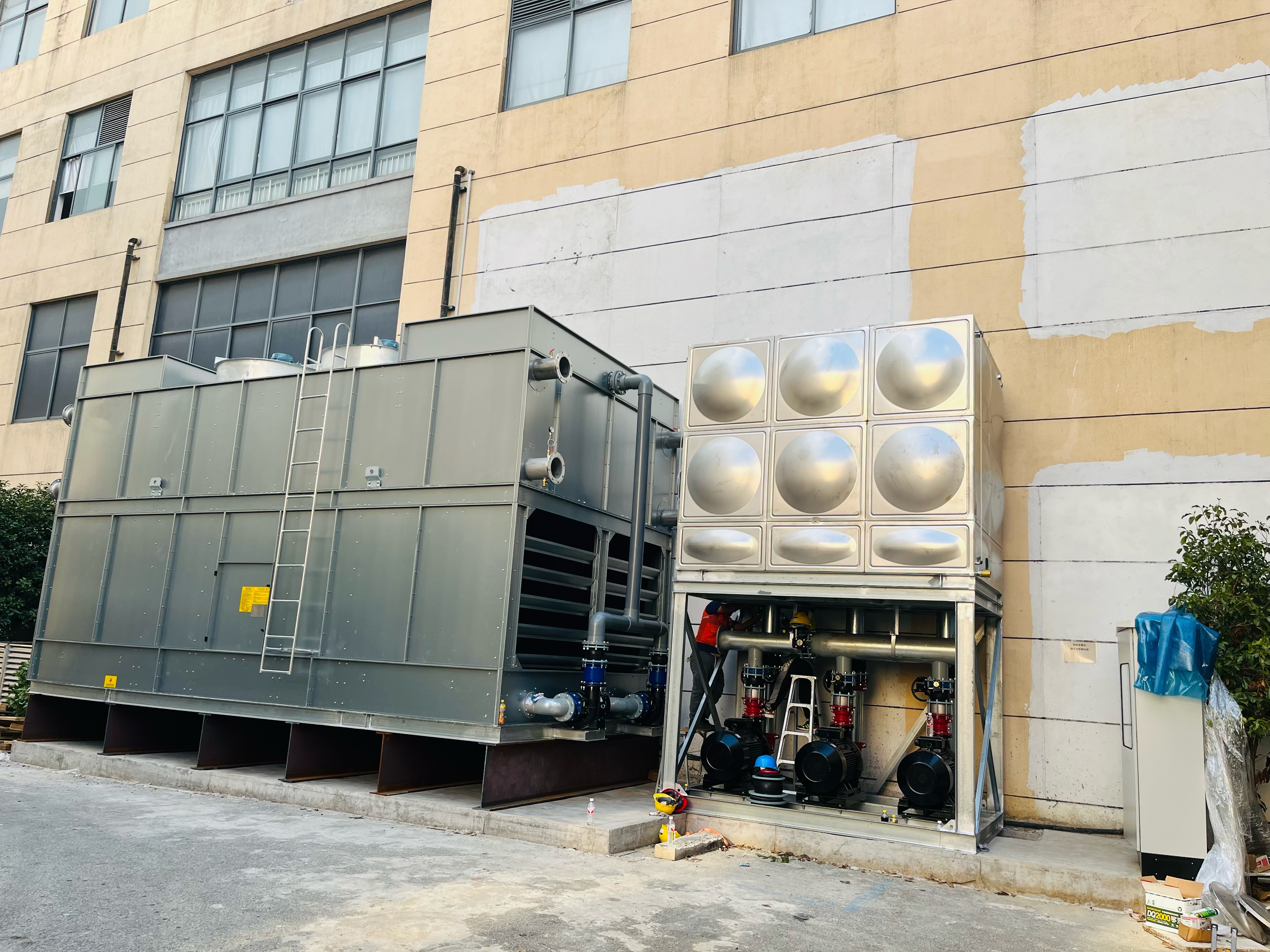

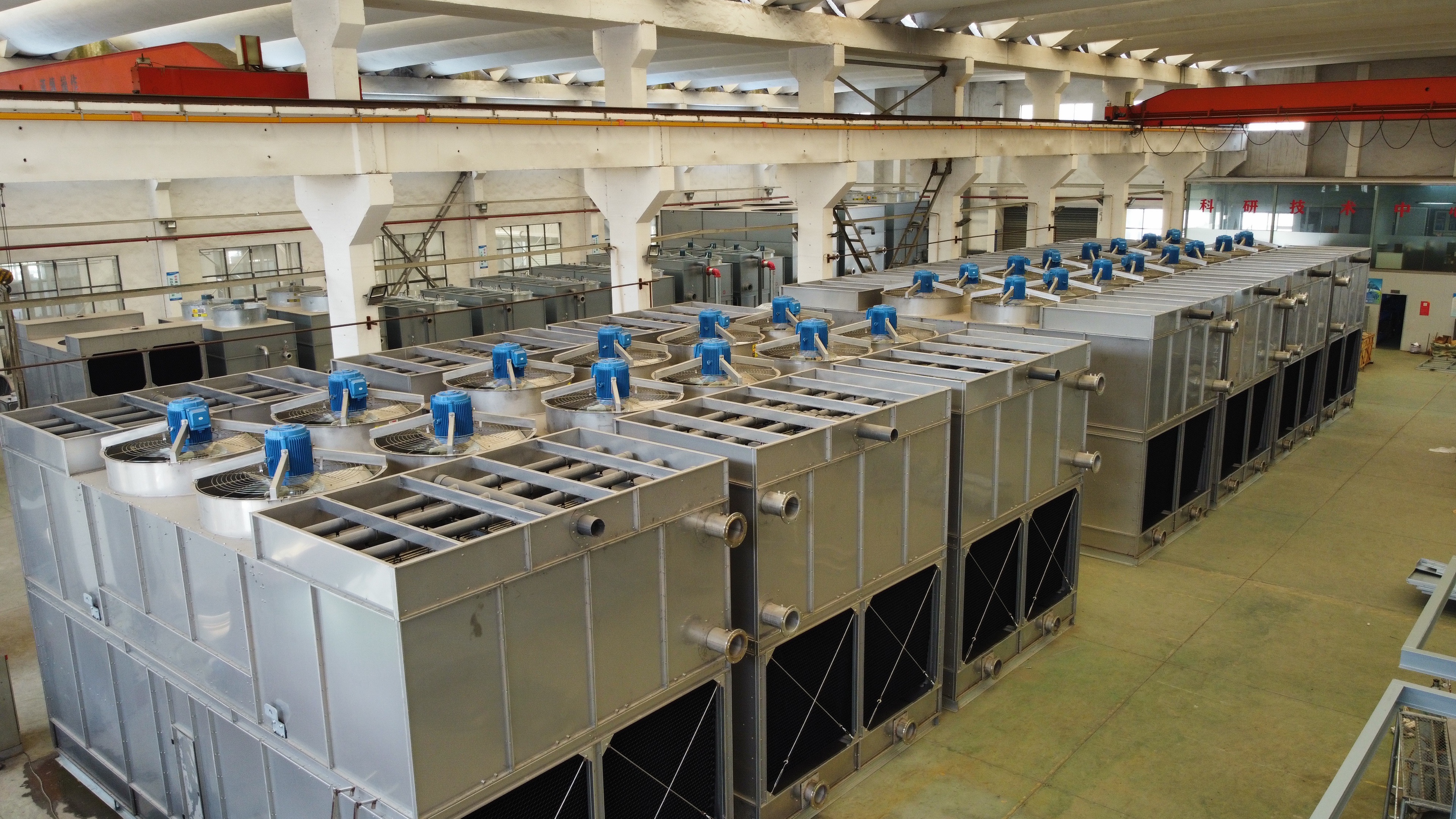

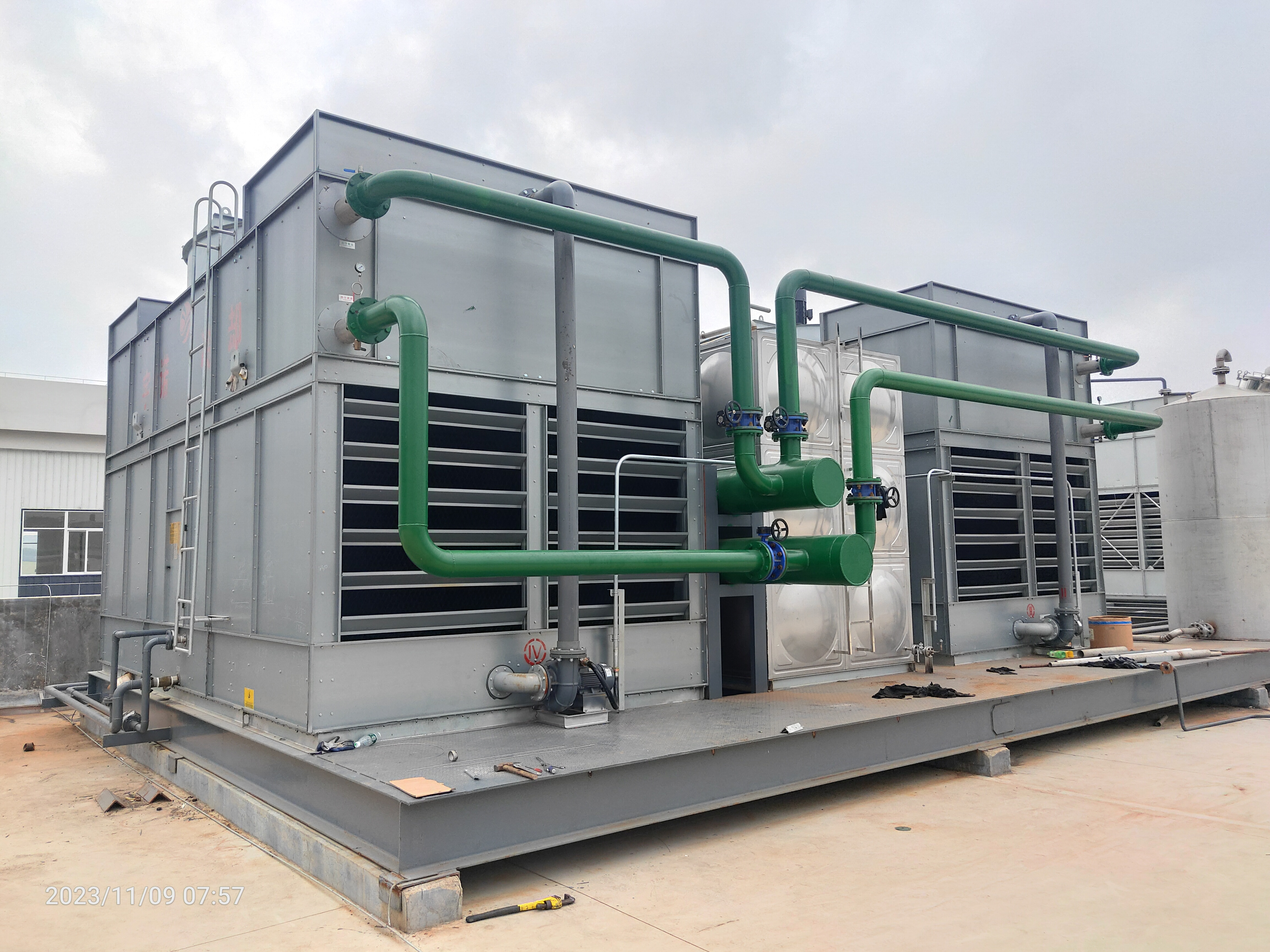

Real Product Views

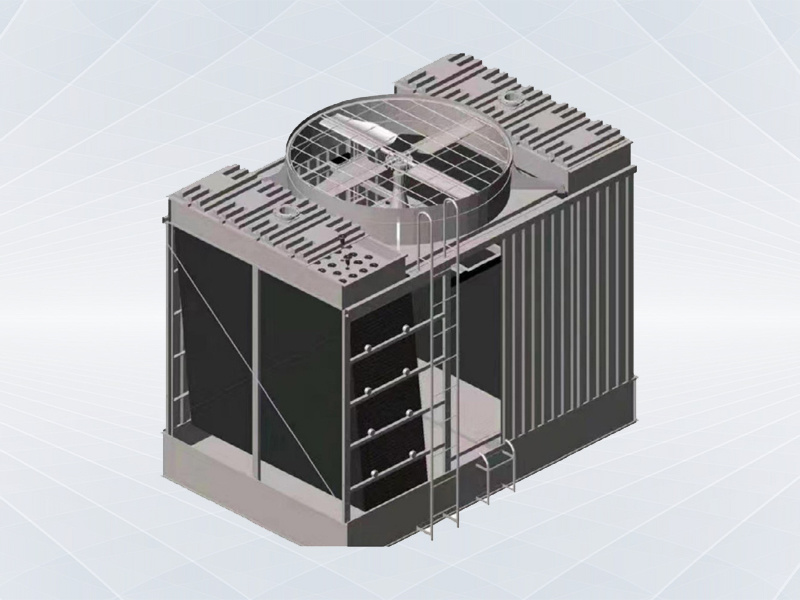

Square Cross Flow Open Cooling Tower

YKH Series

High-Range Cooling (Range > 18°C): Cross-flow design allows fill to be built very high without increasing airflow resistance — ideal for demanding temperature drops (e.g. 55°C down to 35°C or lower)
Deep-Cooling Industrial Processes: Fill heights of 5.5m to 15m+ enable efficient high-capacity cooling for steel processing, paper manufacturing, and rubber production
High-Temperature Wastewater Applications: Grid-type fill is easy to clean without shutting down the unit — extends applicable turbidity up to 450 ppm, preferred choice for challenging water conditions

Cross Flow Open

Cooling Capacity

50 – 800 m³/h

Model Variants

>18°C

High ΔT Range

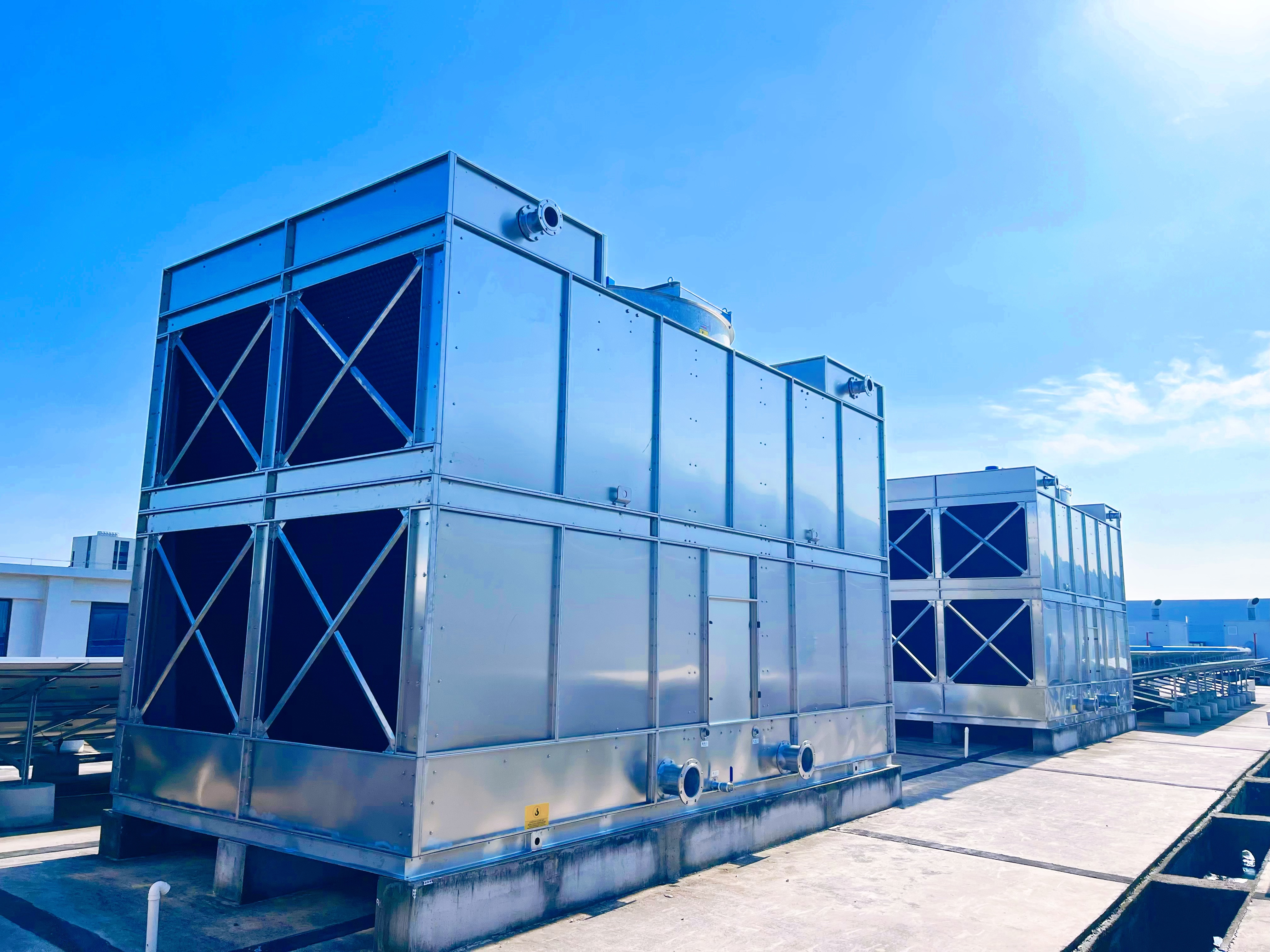

Product Views

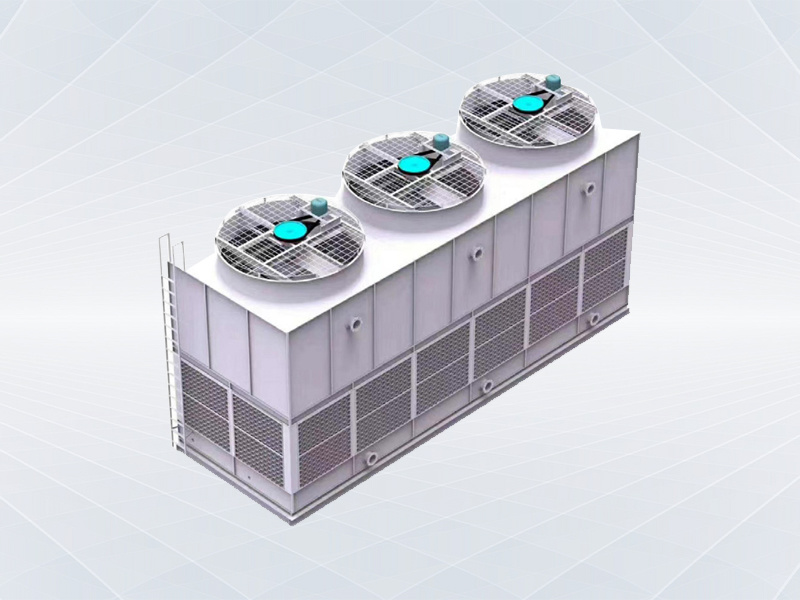

Square Counter Flow Open Cooling Tower

YKN Series

Standard design conditions: Dry bulb 31.5°C, wet bulb 28°C, atmospheric pressure 99,400 Pa, inlet water 37°C, outlet water 32°C
Special sloped trapezoidal wave fill — excellent thermal performance, low airflow resistance, compact structure, small footprint
Wing-type hollow FRP fan blades — large diameter, low speed, low dynamic pressure — energy saving and low noise
Ultra-low noise design with noise reduction devices at air inlets/outlets and spray zone — reduces noise by 5 dB(A) vs. standard units
Flexible parallel connection — ideal for large-volume circulating cooling water systems
Fixed water distribution system with ABS multi-layer low-pressure spray nozzles — uniform distribution, long service life, low pressure head — saving pumping power
Frame options: Q-235 steel or FRP. FRP offers longer service life and lower maintenance; user selectable
For circulating water with prolonged turbidity >50 ppm or oil/grease contamination, PVC grid fill is recommended — extends applicable turbidity up to 450 ppm

Counter Flow Open

Cooling Capacity

100 – 700 m³/h

Model Variants

−5 dB(A)

Ultra-Low Noise

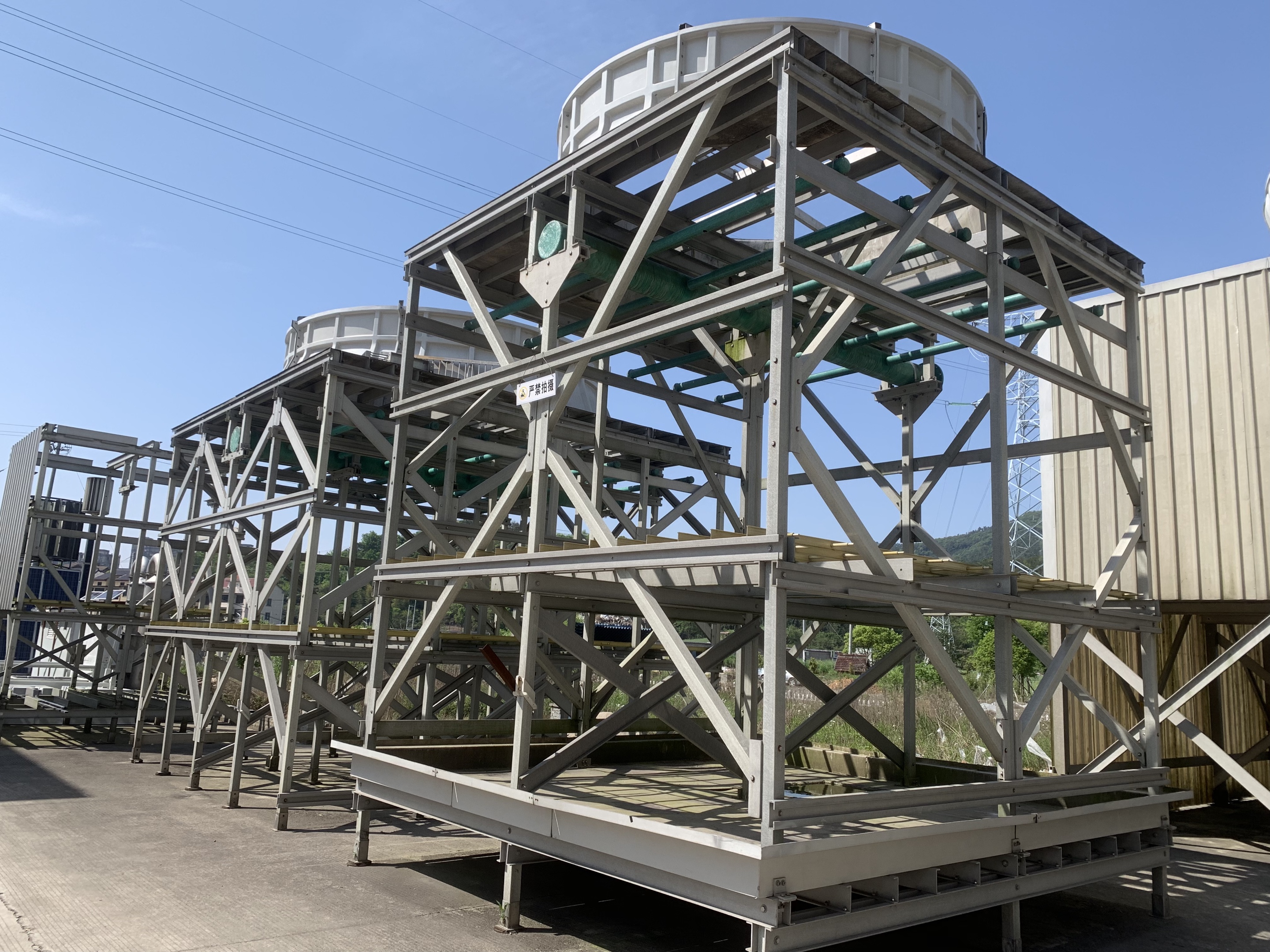

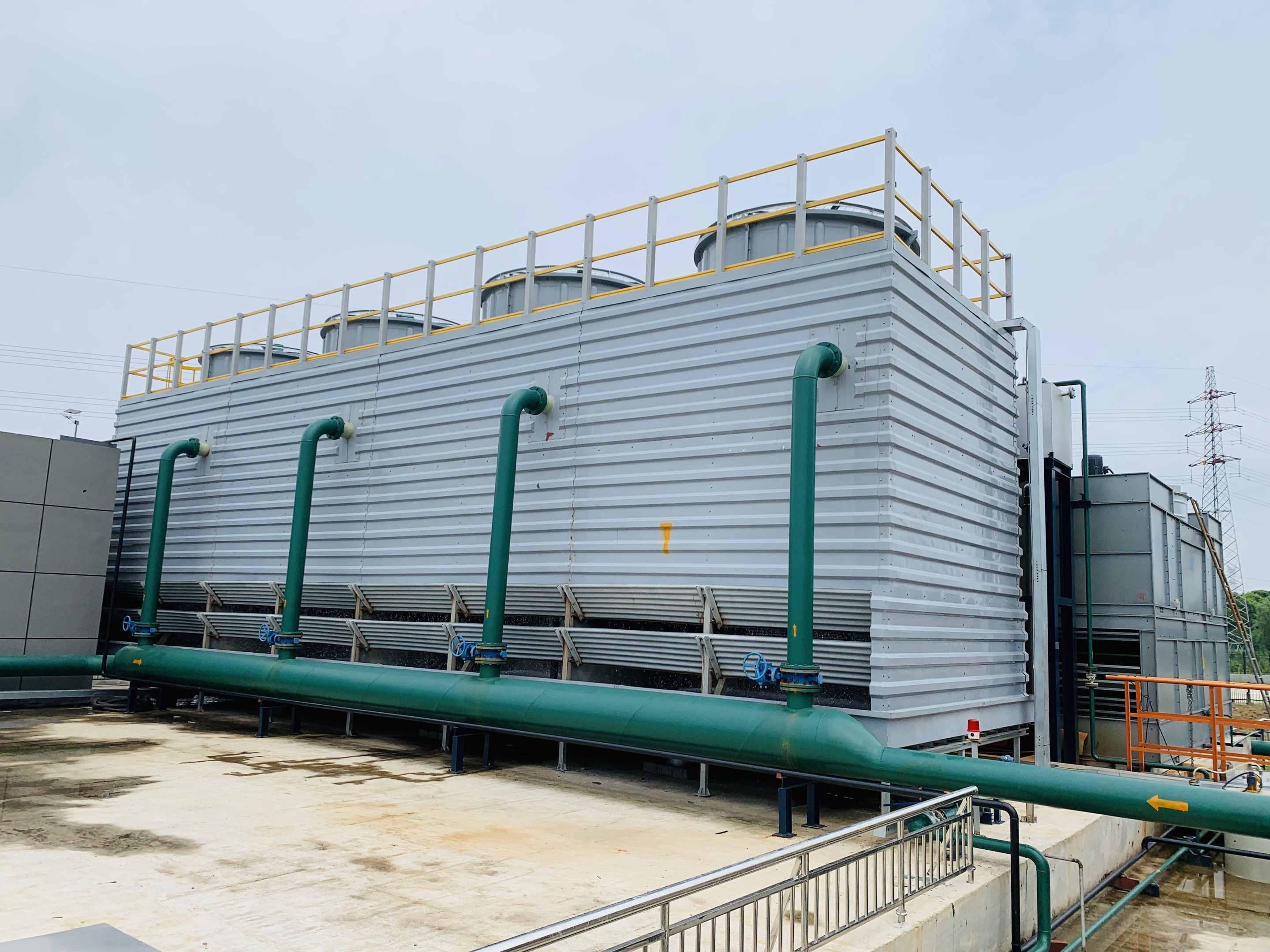

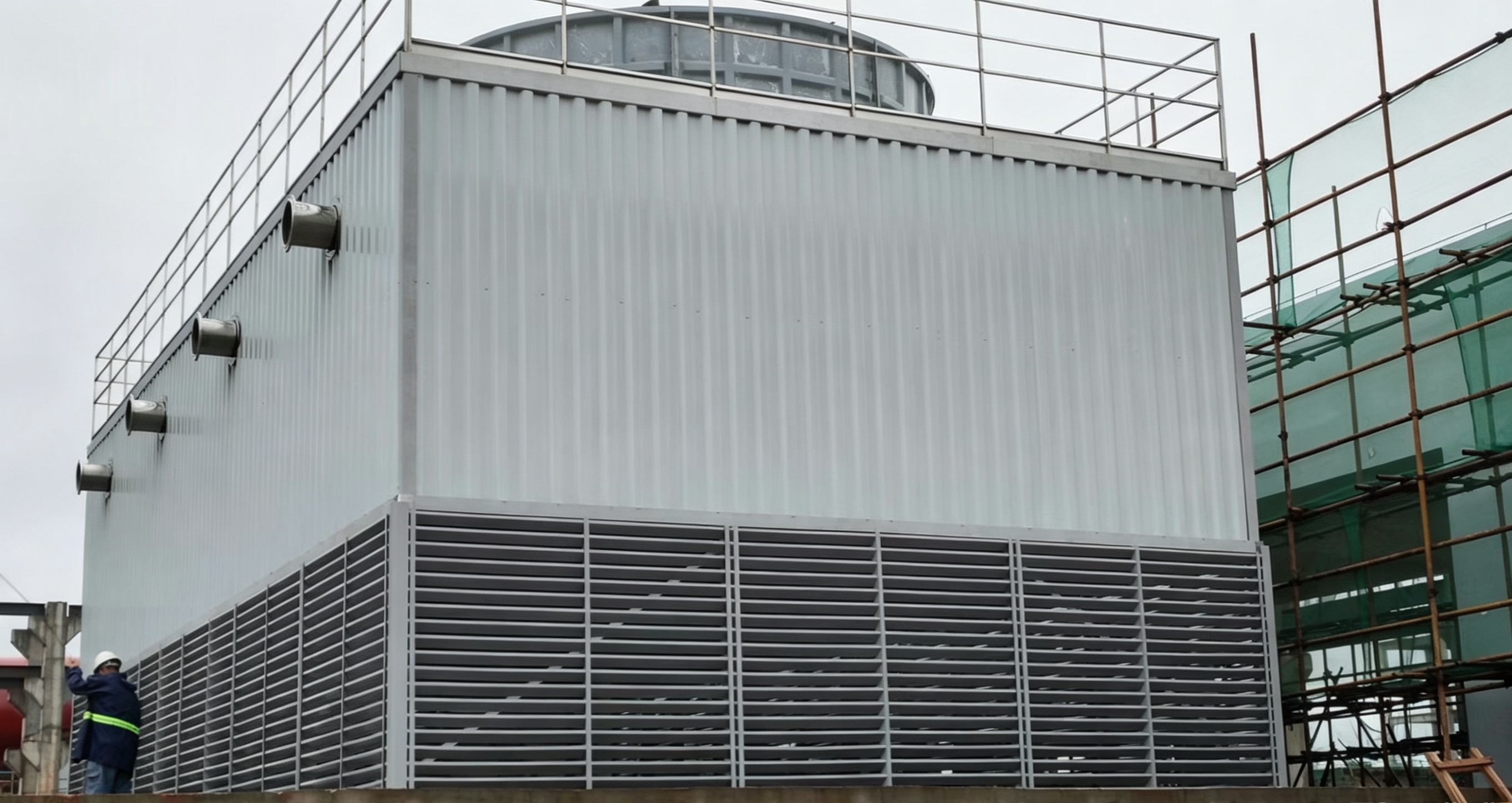

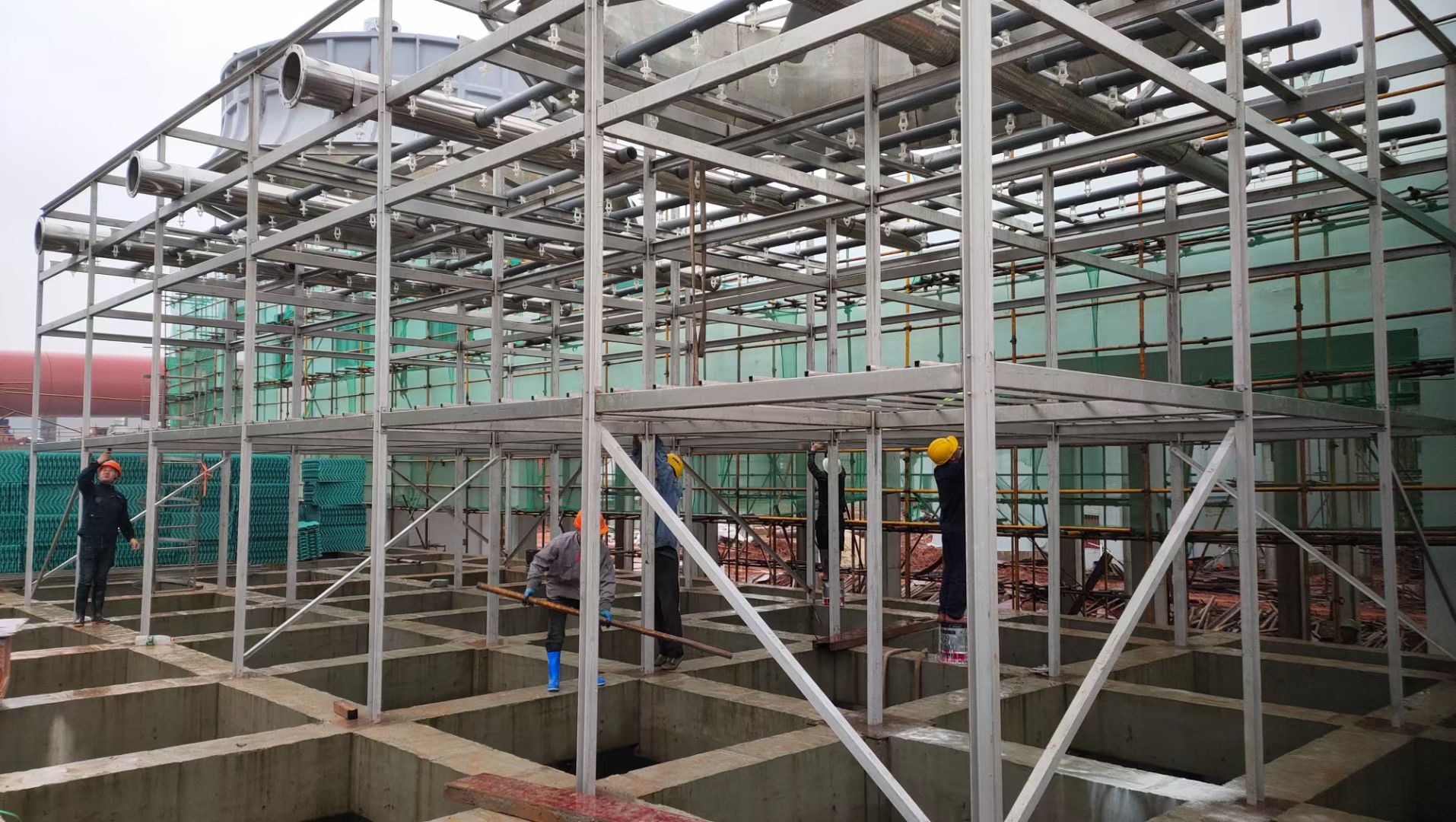

Real Product Views

Technical Specifications

Detailed Spec Tables

All models available with custom configurations. Contact us for specific requirements outside standard ranges.

Model	Cooling Capacity		Fan		Spray Pump			Weight (kg)		Dimensions (mm)	Inlet/Outlet DN	Makeup DN	Drain DN
Model	kcal/h	kW	Power (kW)	Airflow (m³/h)	Power (kW)	Flow (T/h)	Head (m)	Shipping	Operating	L×W×H
YBN-01	50,000	58	1.1×1	16,000	1.1	45	5	500	800	1550×1150×2500	50	20	25
YBN-02	75,000	87	2.2×1	28,000	1.1	45	5	680	1050	2000×1150×2600	50	20	25
YBN-03	100,000	116	1.1×2	32,000	1.1	45	5	750	1200	2300×1150×2600	65	20	25
YBN-04	125,000	145	1.1×2	32,000	1.5	65	5	850	1390	2850×1150×2800	65	25	32
YBN-05	150,000	174	1.5×2	40,000	1.5	65	5	1200	2700	2850×1150×2800	80	25	32
YBN-06	200,000	233	2.2×2	56,000	2.2	100	5	1550	3200	2850×1600×2960	80	25	32
YBN-07	250,000	291	2.2×2	56,000	2.2	100	5	1680	3450	2850×1600×2960	80	25	32
YBN-08	300,000	348	2.2×2	60,000	2.2	100	5	1850	3700	3650×1600×3230	100	25	32
YBN-09	350,000	407	3×2	80,000	3	150	5	2000	4000	3650×1600×3350	100	25	32
YBN-10	400,000	465	3×2	86,000	3	150	5	2350	4560	3650×1900×3570	125	32	40
YBN-11	500,000	581	3×2	100,000	5.5	230	6	2790	5380	4300×1900×3600	100×2	32	40
YBN-12	625,000	727	4×2	120,000	5.5	230	6	3200	6660	4300×2200×3720	100×2	32	40
YBN-13	750,000	872	5.5×2	160,000	7.5	280	6	3800	8000	5000×2200×4100	125×2	40	50
YBN-14	900,000	1046	7.5×2	192,000	7.5	280	6	4250	9300	5300×2400×4100	125×2	40	50
YBN-15	1,000,000	1163	7.5×2	230,000	3×2	300	5	5000	11200	5300×2700×4420	150×2	40	50
YBN-16	1,150,000	1337	7.5×2	260,000	3×2	300	5	5220	12500	5300×2900×4620	150×2	40	50
YBN-17	1,250,000	1453	7.5×2	260,000	5.5×2	460	6	5800	13000	6300×2900×4620	150×2	40	50
YBN-18	1,400,000	1628	11×2	280,000	5.5×2	460	6	6290	13900	6300×3000×4910	150×2	50	65
YBN-19	1,500,000	1744	11×2	280,000	7.5×2	560	6	6800	14900	7000×3000×5160	200×2	50	65
YBN-20	1,750,000	2034	15×2	360,000	7.5×2	560	6	7500	15500	7000×3200×5260	200×2	50	65
YBN-21	2,000,000	2326	15×2	400,000	5.5×2	460	6	8260	16360	7800×3200×5560	200×2	50	65
YBN-22	2,250,000	2616	18.5×2	490,000	5.5×2	460	6	9210	18200	8200×3200×5560	200×2	50	65
YBN-23	2,500,000	2907	18.5×2	540,000	7.5×2	560	6	9950	19950	9100×3400×5560	200×2	50	65

Model	Cooling Capacity		Fan		Spray Pump			Weight (kg)		Dimensions (mm)	Inlet/Outlet DN	Makeup DN	Drain DN
Model	kcal/h	kW	Power (kW)	Airflow (m³/h)	Power (kW)	Flow (T/h)	Head (m)	Shipping	Operating	L×W×H
YBH-05	150,000	174	1.5×2	50,000	1.1	45	5	1000	2400	2800×1700×2720	65	25	32
YBH-06	200,000	233	1.5×2	50,000	1.1	45	5	1120	2550	2800×1900×2720	65	25	32
YBH-07	250,000	291	1.5×2	50,000	1.1	45	5	1250	2700	2800×1900×2720	80	25	32
YBH-08	300,000	348	2.2×2	60,000	1.5	65	5	1400	3000	2800×2200×2970	80	25	32
YBH-09	350,000	407	1.5×3	75,000	1.5	65	5	1550	3350	3650×2200×3120	100	32	40
YBH-10	400,000	465	1.5×3	75,000	2.2	100	5	1790	3750	3650×2200×3120	125	32	40
YBH-11	500,000	581	1.5×3	75,000	2.2	100	5	1900	4200	3650×2200×3120	125	32	40
YBH-12	625,000	727	2.2×3	90,000	2.2	100	5	2400	5200	3650×2400×3170	125	32	40
YBH-13	750,000	872	2.2×3	90,000	3	150	5	3000	6450	4300×2400×3190	125	40	50
YBH-14	900,000	1046	2.2×4	120,000	3	150	5	3600	7800	5000×2400×3190	150	40	50
YBH-15	1,000,000	1163	2.2×4	140,000	5.5	230	6	4000	9000	5300×2600×3430	125×2	40	50
YBH-16	1,150,000	1337	3×4	152,000	5.5	230	6	4700	10500	5600×2600×3650	125×2	40	65
YBH-17	1,250,000	1453	4×4	200,000	7.5	280	6	5100	12000	5900×2600×3950	150×2	40	65
YBH-18	1,400,000	1628	4×4	200,000	7.5	280	6	5600	12800	5900×2600×4150	150×2	40	65
YBH-19	1,500,000	1744	5.5×4	240,000	3×2	300	5	5950	13200	5900×2700×4150	150×2	40	65
YBH-20	1,750,000	2034	5.5×4	280,000	3×2	300	5	6650	15520	6700×3000×4150	200×2	50	65
YBH-21	2,000,000	2325	5.5×4	280,000	5.5×2	460	6	7360	16230	6700×3100×4150	200×2	50	65
YBH-22	2,250,000	2616	7.5×4	320,000	5.5×2	460	6	8150	19150	7600×3200×4790	200×2	50	65
YBH-23	2,500,000	2906	11×4	320,000	7.5×2	560	6	8960	19960	7600×3200×4790	200×2	50	65
YBH-24	2,750,000	3198	11×4	480,000	7.5×2	560	6	9680	21950	8300×3400×4790	200×2	50	65

Model	Cooling Capacity		Fan		Spray Pump			Weight (kg)		Dimensions (mm)	Inlet/Outlet DN	Makeup DN	Drain DN
Model	kcal/h	kW	Power (kW)	Airflow (m³/h)	Power (kW)	Flow (T/h)	Head (m)	Shipping	Operating	L×W×H
YBF-10	400,000	465	5.5×1	75,600	1.1×2	80	5	2400	6600	4600×2200×3100	DN80×2	32	40
YBF-11	500,000	581	7.5×1	89,000	1.1×2	80	5	2600	6890	4600×2200×3200	DN80×2	32	40
YBF-12	625,000	727	7.5×1	107,000	1.5×2	110	5	3200	7950	5600×2400×3620	DN100×2	32	40
YBF-13	750,000	872	11×1	136,000	1.5×2	110	5	3680	9200	5600×2600×3720	DN125×2	40	50
YBF-14	900,000	1046	11×1	153,000	2.2×2	200	5	4150	11800	6100×2800×3850	DN125×2	40	50
YBF-15	1,000,000	1163	15×1	165,000	2.2×2	200	5	4700	12200	6600×2800×4220	DN125×2	40	50
YBF-16	1,150,000	1337	15×1	165,000	2.2×2	200	5	5280	13000	6600×3000×4220	DN125×2	40	50
YBF-17	1,250,000	1453	18.5×1	243,000	3×2	240	5	6300	15800	7000×3000×4710	DN150×2	40	50
YBF-18	1,400,000	1628	18.5×1	243,000	3×2	240	5	6800	17000	7000×3200×4710	DN150×2	50	65
YBF-19	1,500,000	1744	22×1	275,000	4×2	320	5	7300	18000	7500×3200×5000	DN150×2	50	65
YBF-20	1,750,000	2034	22×1	275,000	4×2	320	5	8200	19800	8000×3400×5180	DN150×2	50	65
YBF-21	2,000,000	2326	30×1	303,000	5.5×2	400	6	9500	22500	8000×3400×5280	DN200×2	50	65
YBF-22	2,250,000	2616	30×1	303,000	7.5×2	500	6	10800	23600	8300×3600×—	DN200×2	50	65
YBF-23	2,500,000	2907	30×1	338,000	7.5×2	500	6	11600	25500	8900×3600×5680	DN200×2	50	65

Standard design conditions: 37°C inlet → 32°C outlet water temperature; wet bulb 28°C.

Model	Capacity (m³/h)	Overall Dimensions (mm)			Airflow (m³/h)	Fan Dia. (mm)	Motor (kW)	Inlet Head (mH₂O)	Connection DN (mm)				Weight (kg)		Noise dB(A)
Model	Capacity (m³/h)	L	W	H	Airflow (m³/h)	Fan Dia. (mm)	Motor (kW)	Inlet Head (mH₂O)	In/Out	Overflow	Drain	Makeup	Shipping	Operating	Noise dB(A)
YKH-50	50	1500	3200	3200	33,000	1200	1.5	3.8	100	50	40	20	670	1475	58
YKH-65	65	1880	3200	3200	40,000	1200	2.2	3.8	100	50	40	20	740	1685	58
YKH-80	80	1880	3400	3200	56,000	1500	3	3.8	125	65	40	20	880	2040	59
YKH-100	100	2180	3400	3700	60,000	1500	3	4.2	125	65	40	20	1150	2350	59
YKH-125	125	2180	3800	3700	79,000	1800	4	4.2	150	80	40	20	1250	2550	59
YKH-150	150	2680	3800	3700	100,000	1800	4	4.2	150	80	40	20	1350	2850	59
YKH-175	175	2680	4200	3700	105,000	2200	5.5	4.2	200	80	40	20	1520	3130	60
YKH-200	200	2680	4200	4500	125,000	2200	7.5	5.1	200	80	40	25	1620	3770	60
YKH-225	225	3000	4200	4500	130,000	2200	7.5	5.1	200	80	40	25	2080	4300	60
YKH-250	250	3000	4500	4500	175,000	2500	7.5	5.1	200	80	40	25	2200	4870	61
YKH-300	300	3000	5000	4500	185,000	2500	7.5	5.1	200	80	40	25	2550	5300	61
YKH-350	350	3300	5500	4800	200,000	2950	11	5.4	250	80	40	40	2850	6200	61
YKH-400	400	3300	5500	5400	220,000	2950	11	6.0	250	80	40	40	3250	6600	62
YKH-450	450	3800	5550	5400	235,000	2950	11	6.0	250	80	50	40	3550	7400	62
YKH-500	500	3800	6000	5600	305,000	3400	15	6.2	300	80	50	40	4050	8200	63
YKH-600	600	4600	6000	5600	335,000	3400	15	6.2	300	80	50	50	4650	9800	63
YKH-700	700	4600	6200	6000	395,000	3600	18.5	6.5	300	80	50	50	5050	10500	64
YKH-800	800	5100	6200	6000	455,000	3600	22	6.5	300	80	50	50	5450	11500	65

Standard design conditions: Dry bulb 31.5°C, wet bulb 28°C, atmospheric pressure 99,400 Pa, inlet water 37°C, outlet water 32°C.

Model	Overall Dimensions (mm)				Capacity (m³/h)	Fan Dia. (mm)	Motor (kW)	Weight (kg)		Noise dB(A)
Model	L	W	H (Total)	Tower Body H	Capacity (m³/h)	Fan Dia. (mm)	Motor (kW)	Dry	Wet	Noise dB(A)
YKN-100	2460	2460	4280	3240	100	1800	4	1250	2320	61
YKN-125	2460	2460	4430	3390	125	1800	4	1350	2497	62
YKN-150	2760	2760	4720	3590	150	2100	5.5	1420	2627	63
YKN-175	2760	2760	4720	3590	175	2100	5.5	1520	2812	63.5
YKN-200	3370	3370	4930	3260	200	2400	5.5	1770	3770	63.5
YKN-250	3370	3370	5270	3560	250	2400	7.5	1830	2890	64
YKN-300	3980	3980	5160	3380	300	3000	11	2960	6590	64
YKN-350	3980	3980	5680	3900	350	3000	11	3150	6790	64
YKN-400	4895	4895	5330	3260	400	3400	15	3450	7090	65
YKN-450	4895	4895	5480	3410	450	3400	15	4680	9760	65
YKN-500	4895	4895	6070	3900	500	3400	15	5420	12320	66
YKN-600	5810	5810	5850	3650	600	3600	18	5730	12960	66
YKN-700	6725	6725	5650	3650	700	4271	22	6890	16310	67

Precision
Cooling
Solutions

Built to Perform.
Proven to Last.

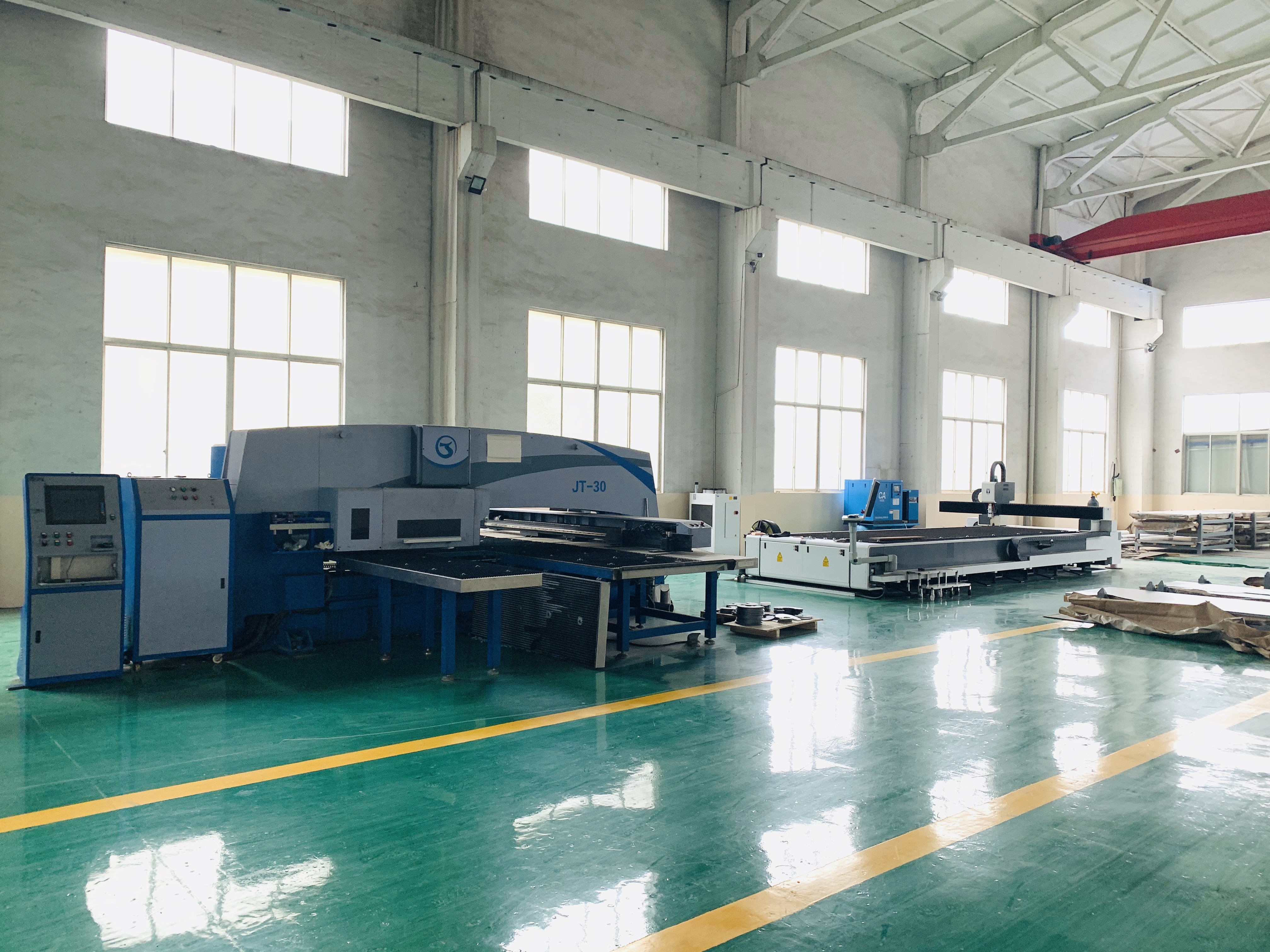

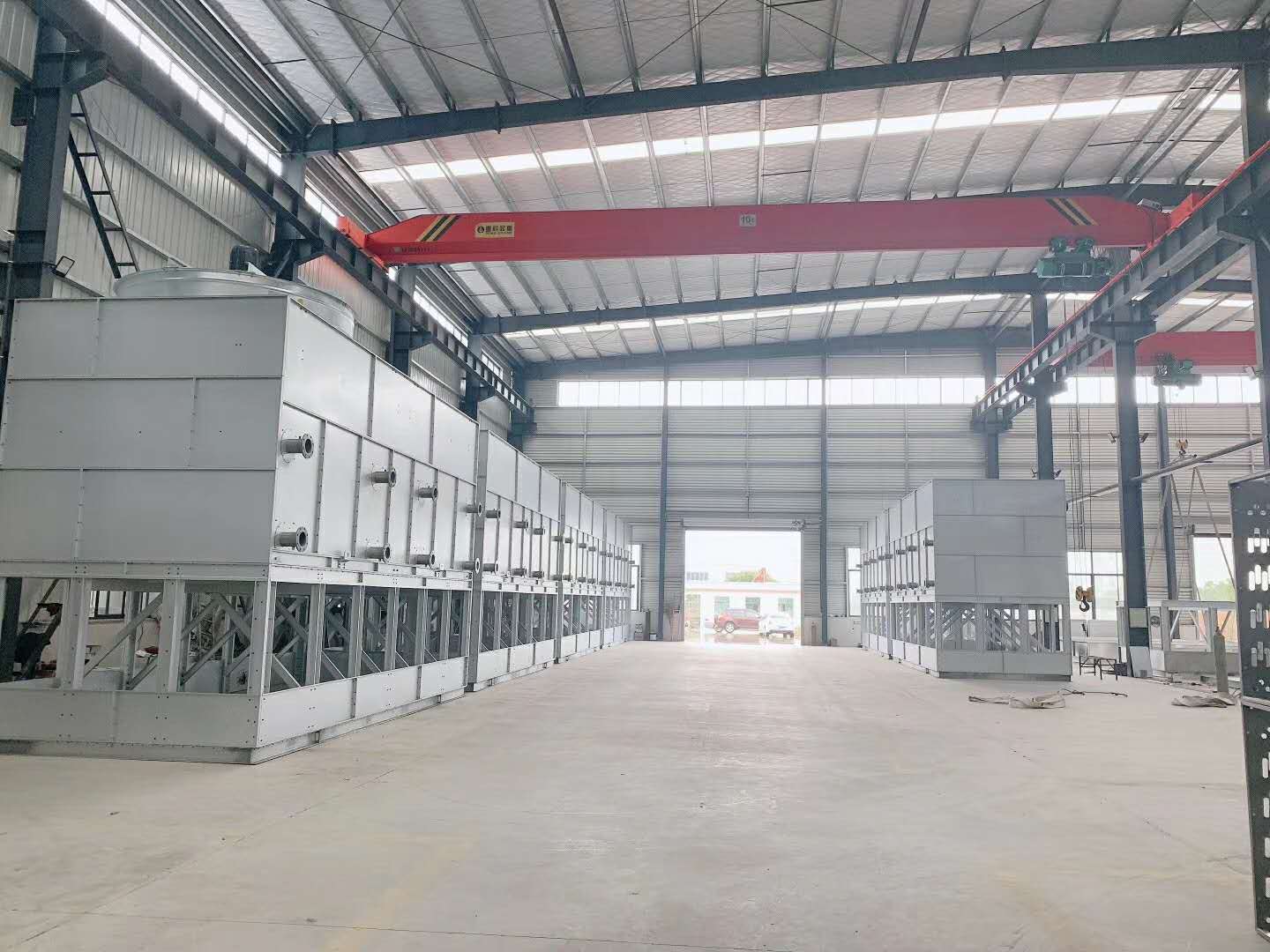

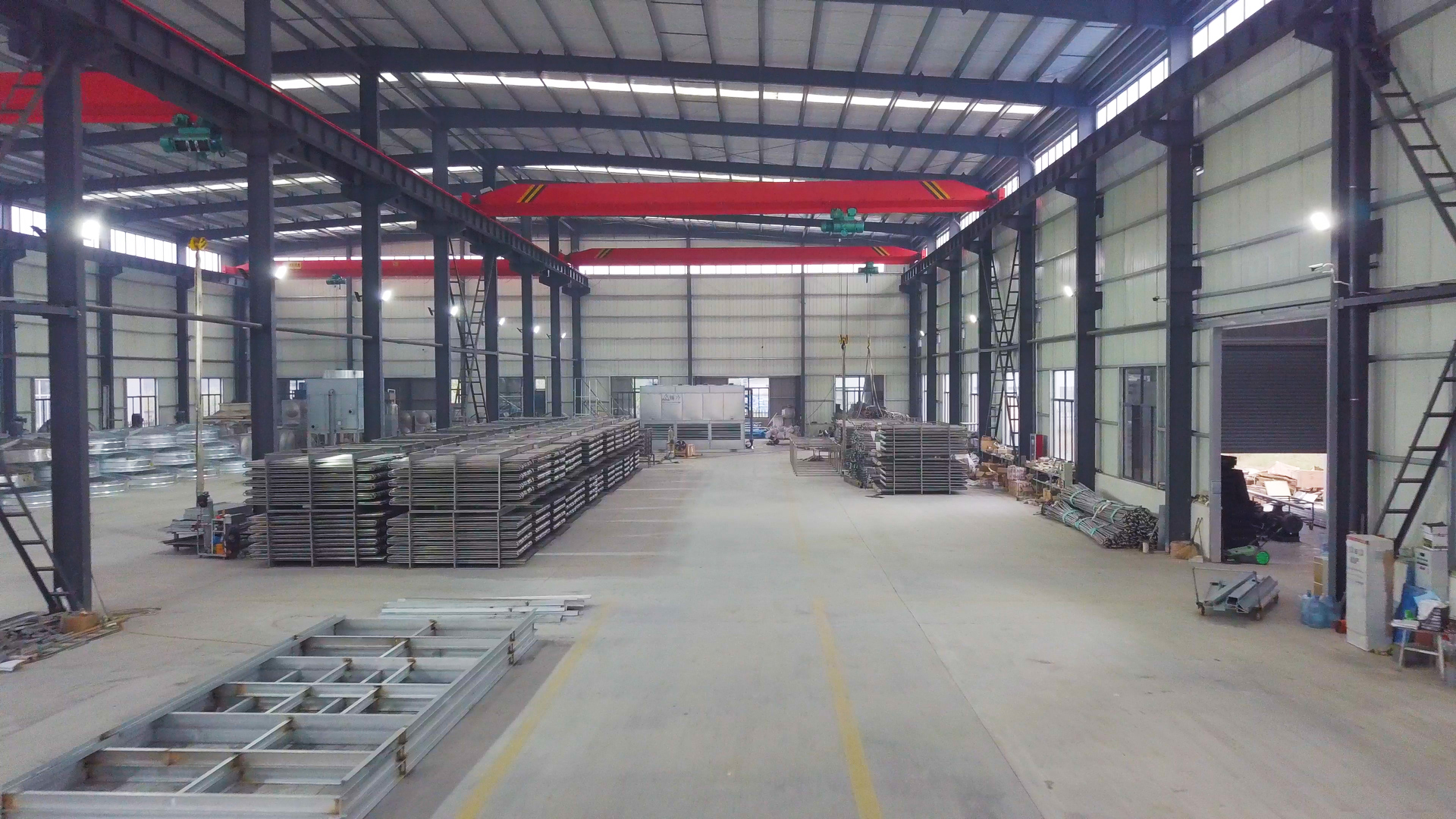

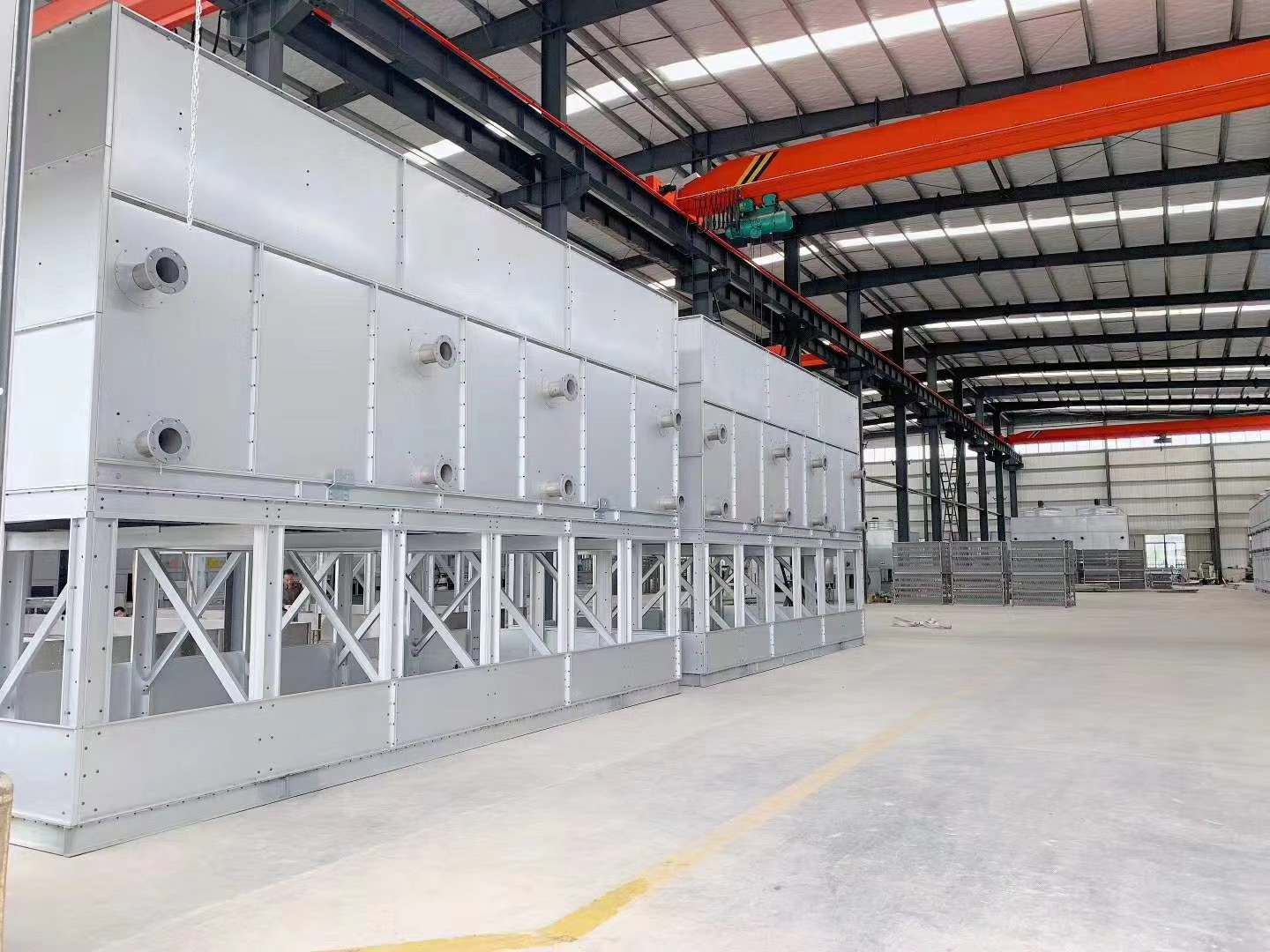

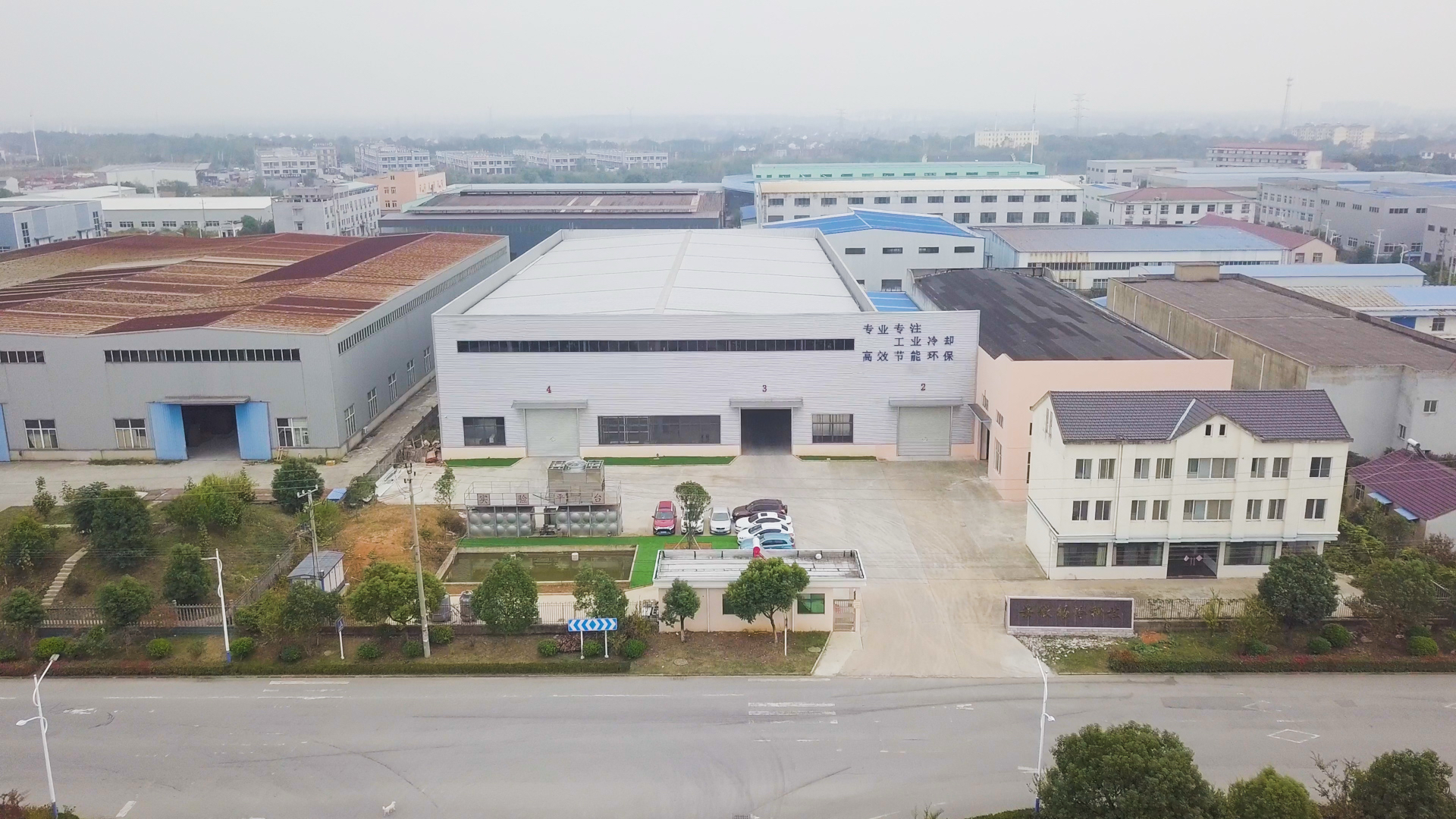

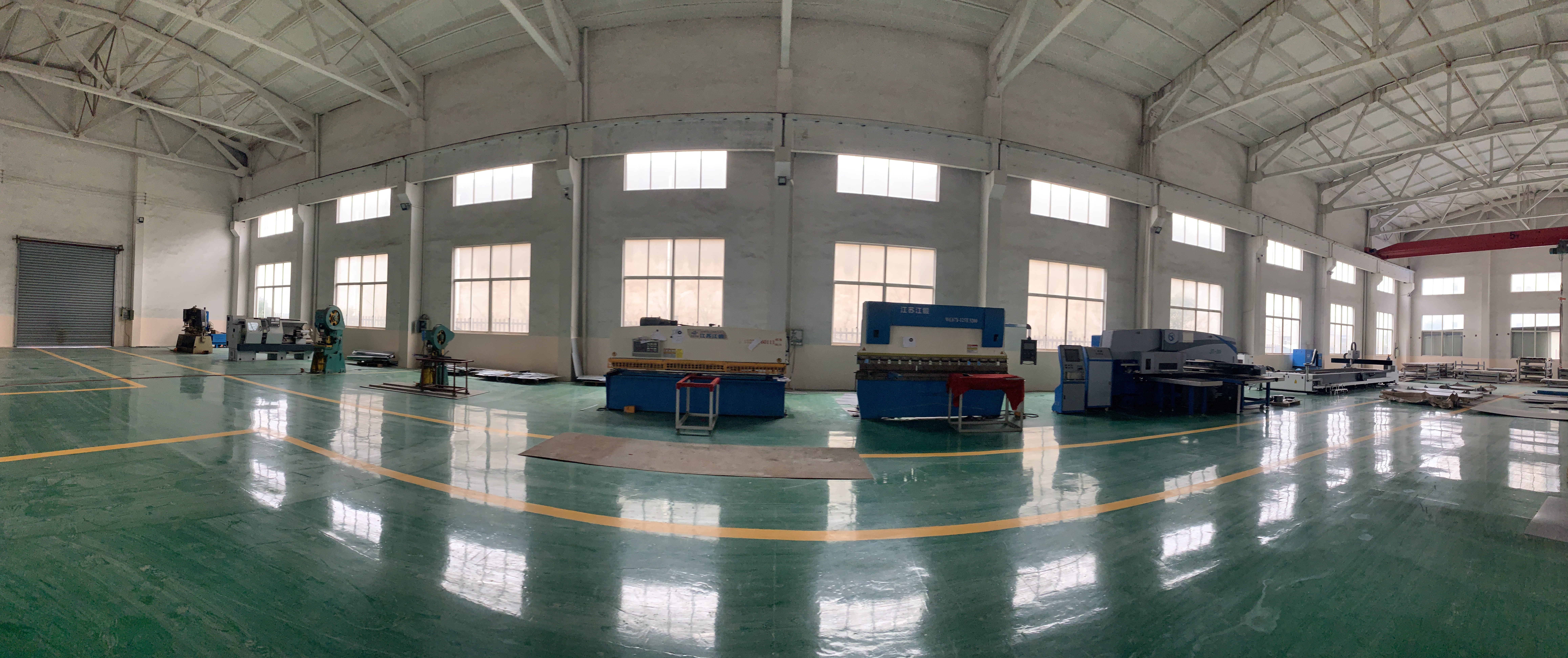

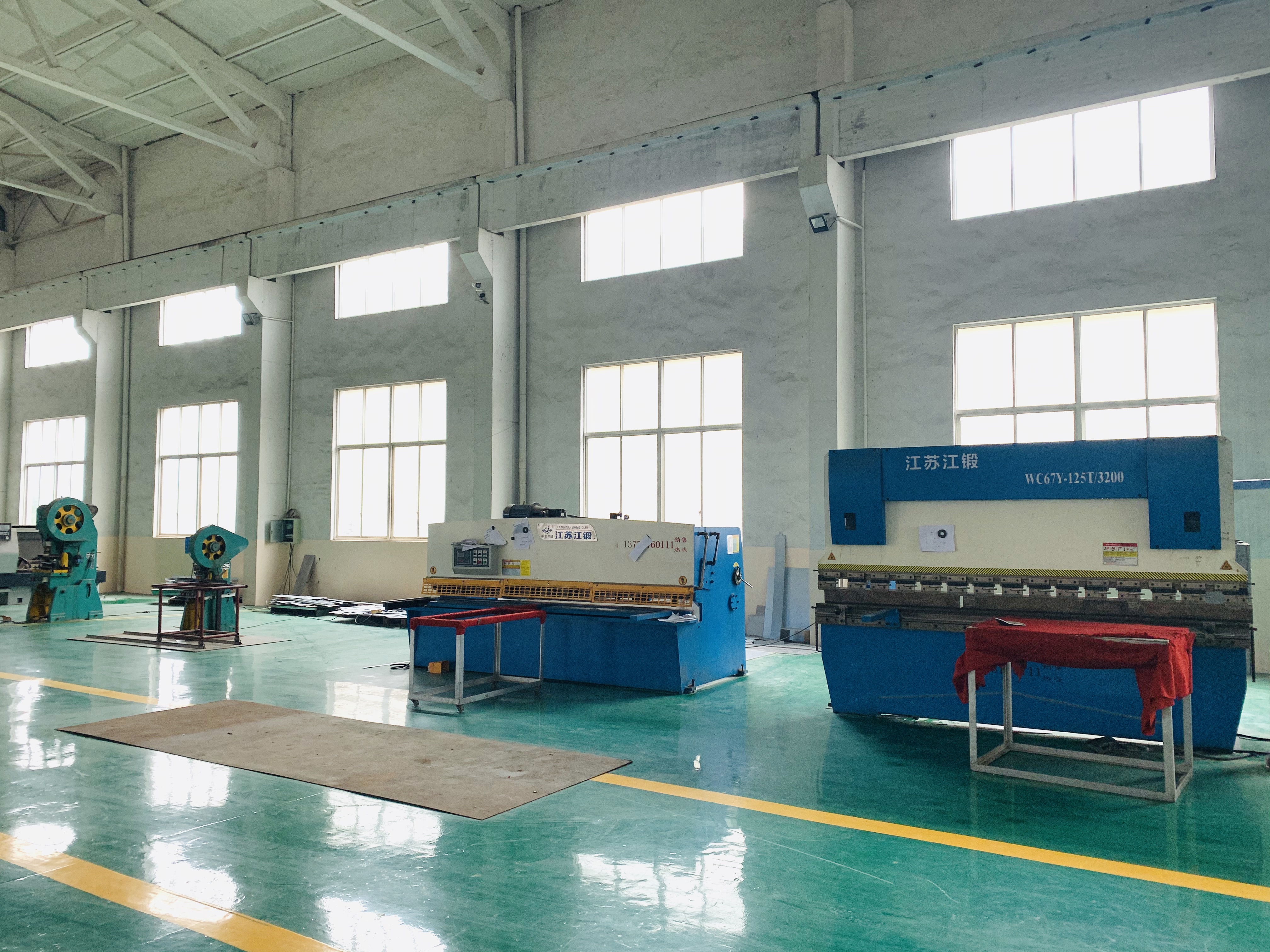

Manufacturing Strength
